Cylinders
Euro Cylinder |
|
| |

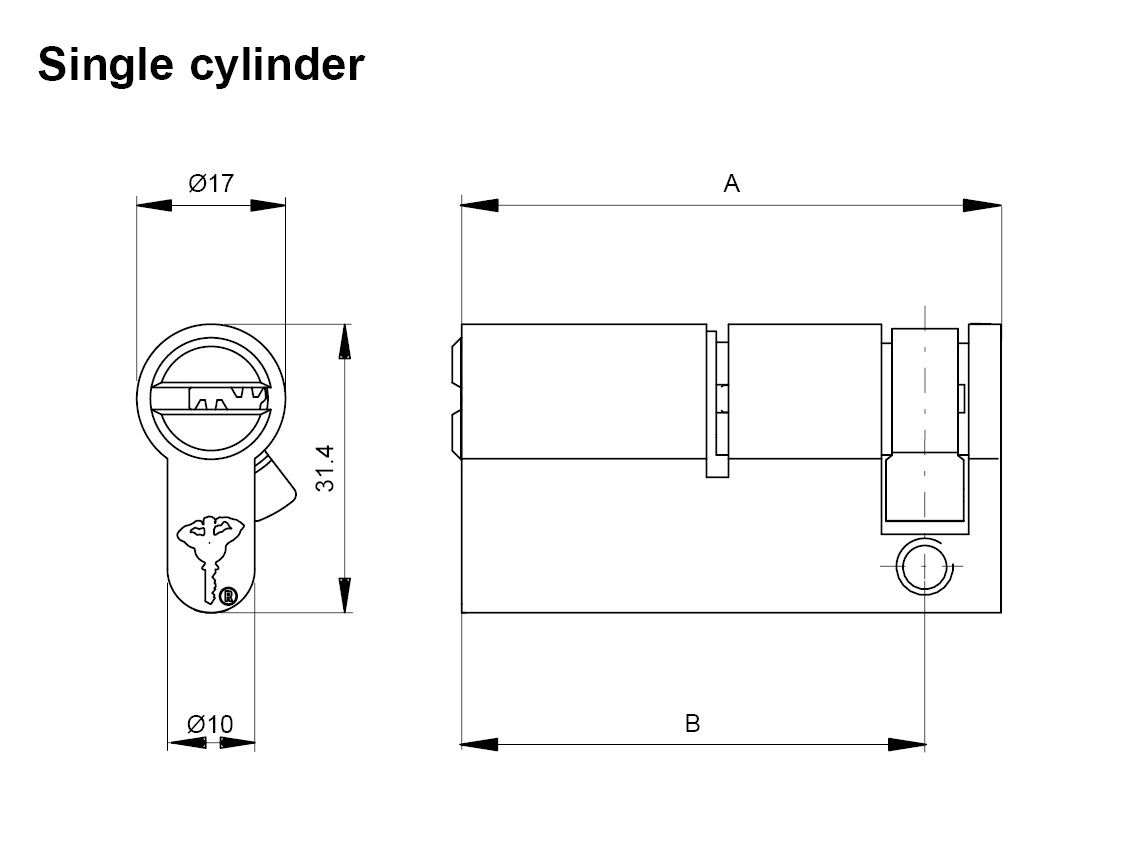

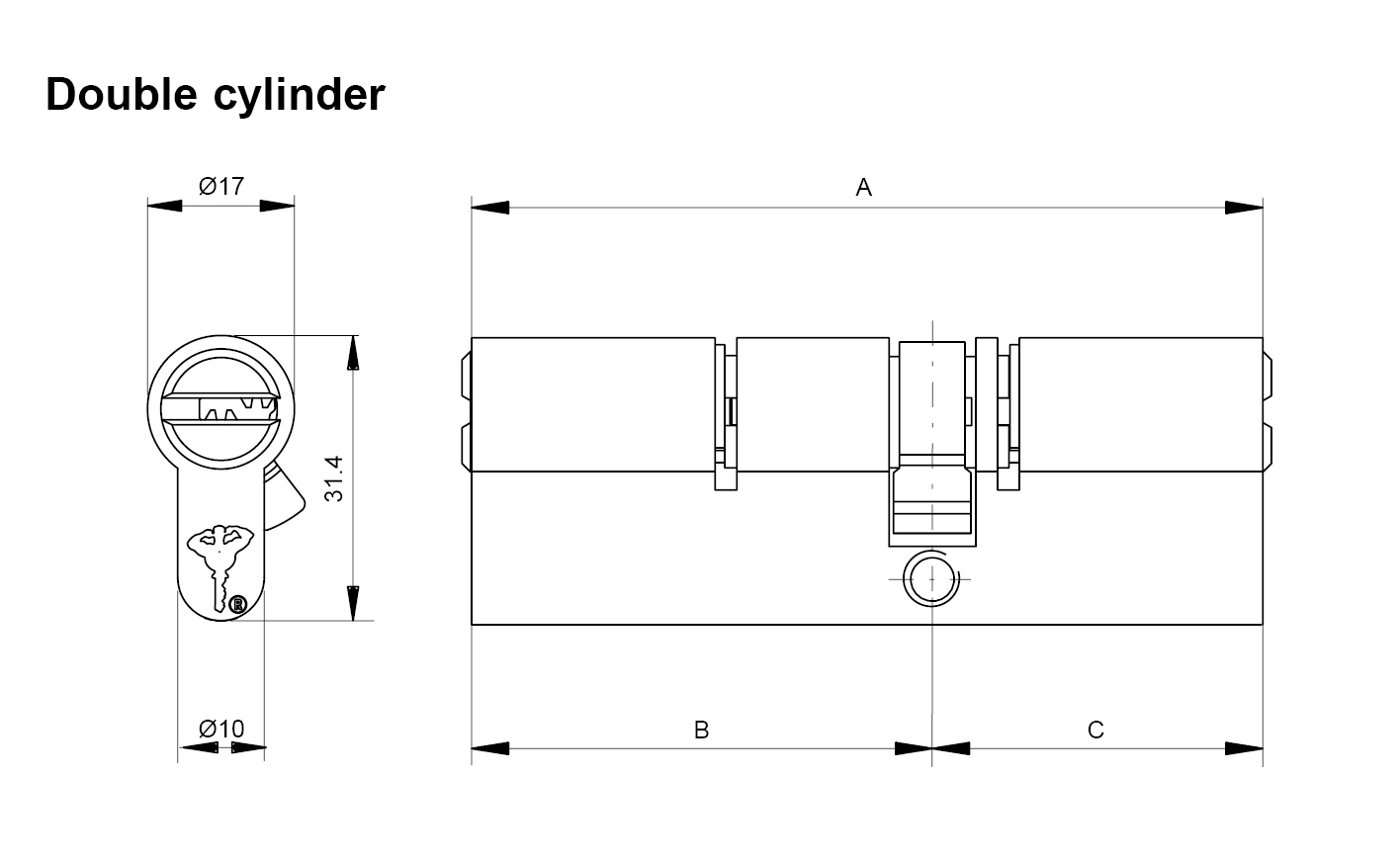

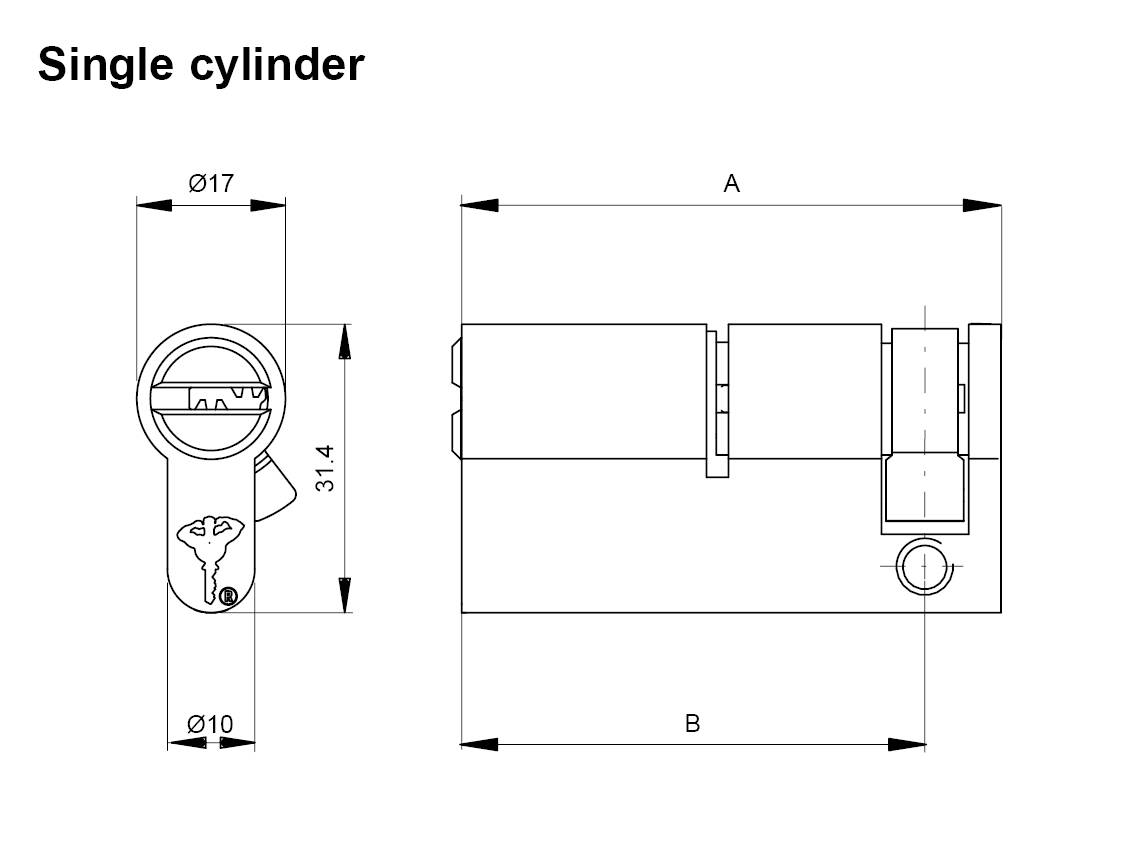

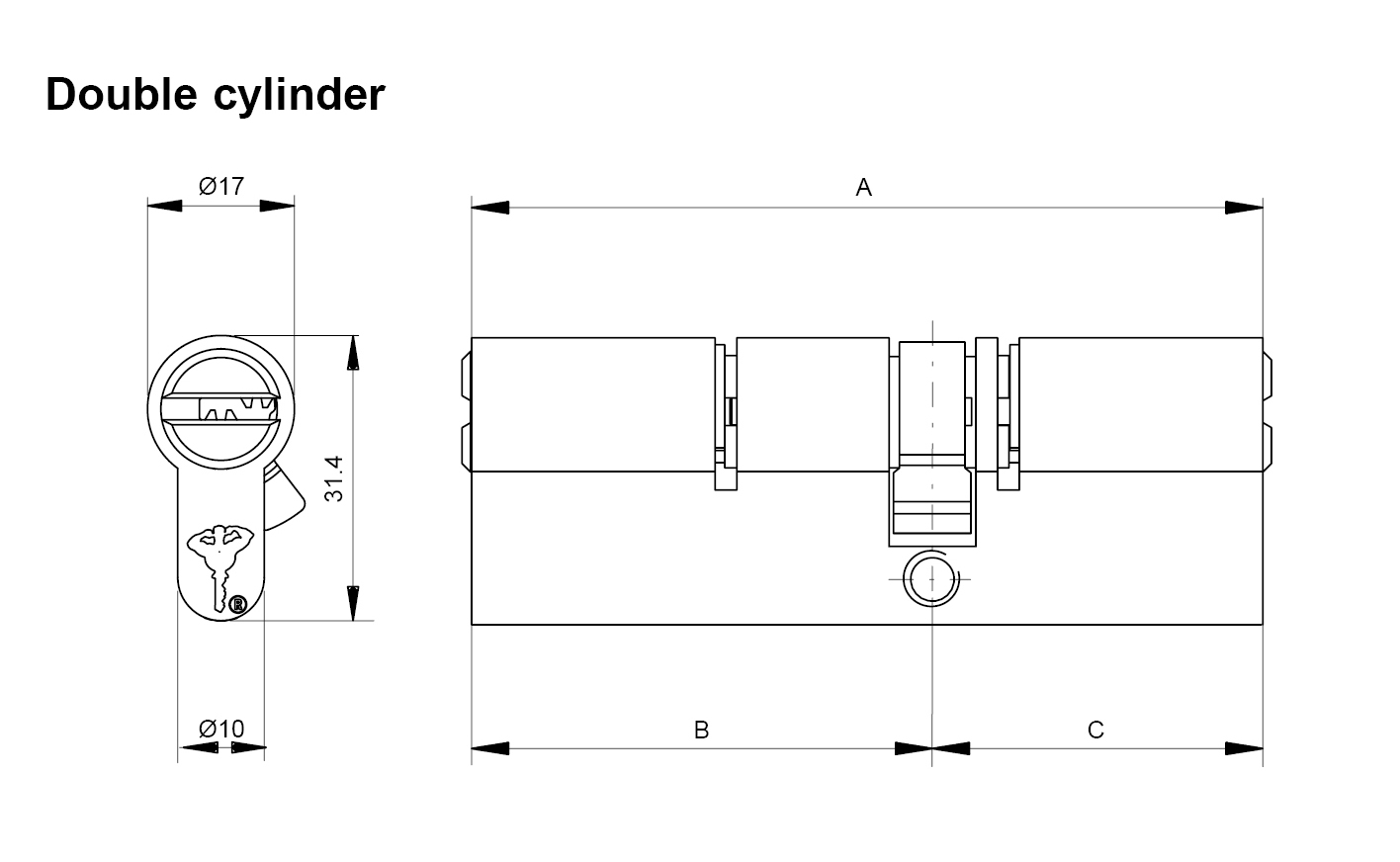

Application Compatible with locks and lock cases using Euro profile cylinder. Operation 360˚ rotation with operating key or thumbturn. Standard double cylinder, full key insertion disengages opposite side. Materials Body and plug: high-quality brass Cam and cogwheel: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass; Shiny brass Special finishes Nickel chrome; Antique brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed Variety of thumbturns, cams and cogwheels Emergency cylinder with both sides permanently operational Standards ISI950; EN1303 euro-cylinder-lengths-available-mm.jpgeuro-cylinder_double_drw.jpg euro-cylinder_single_drw.jpg |
|
|
|
UK Oval Cylinder |
|
|

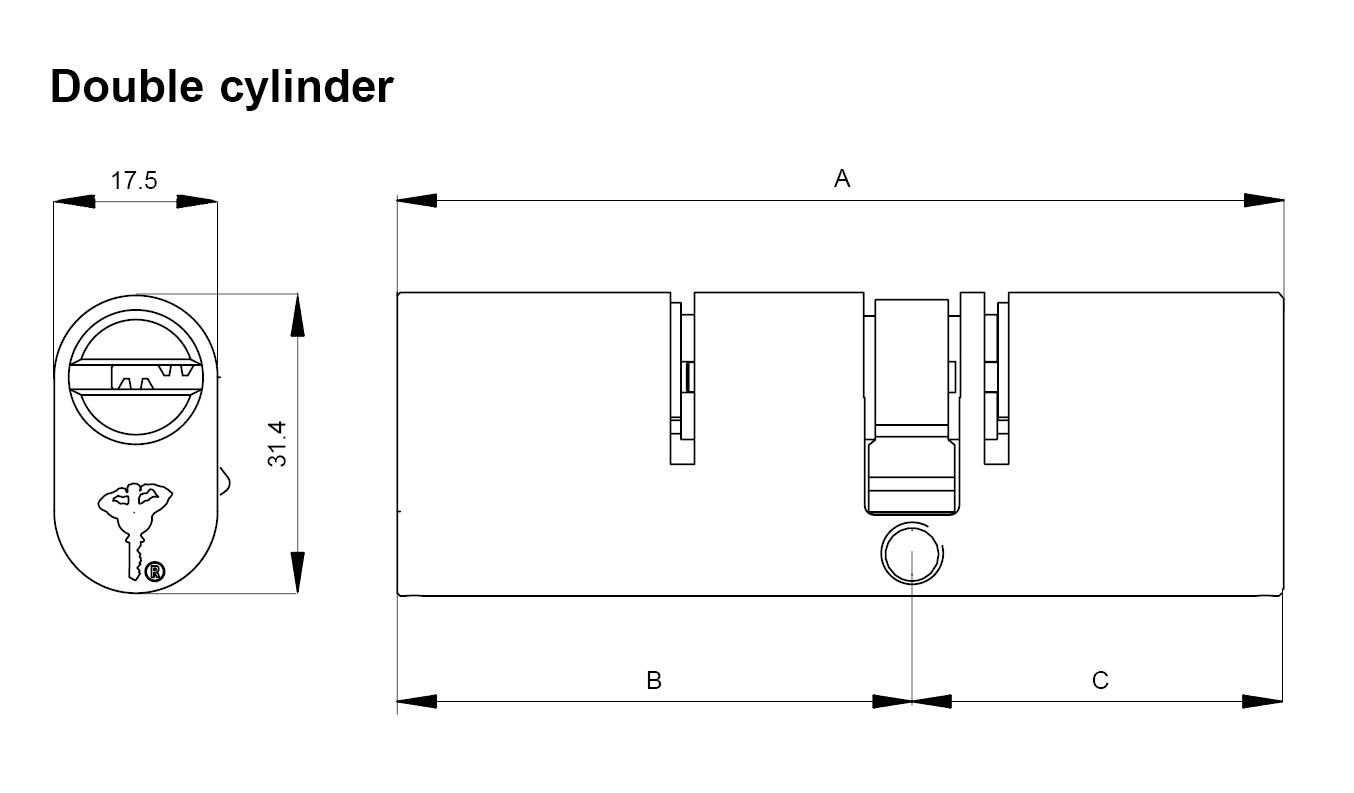

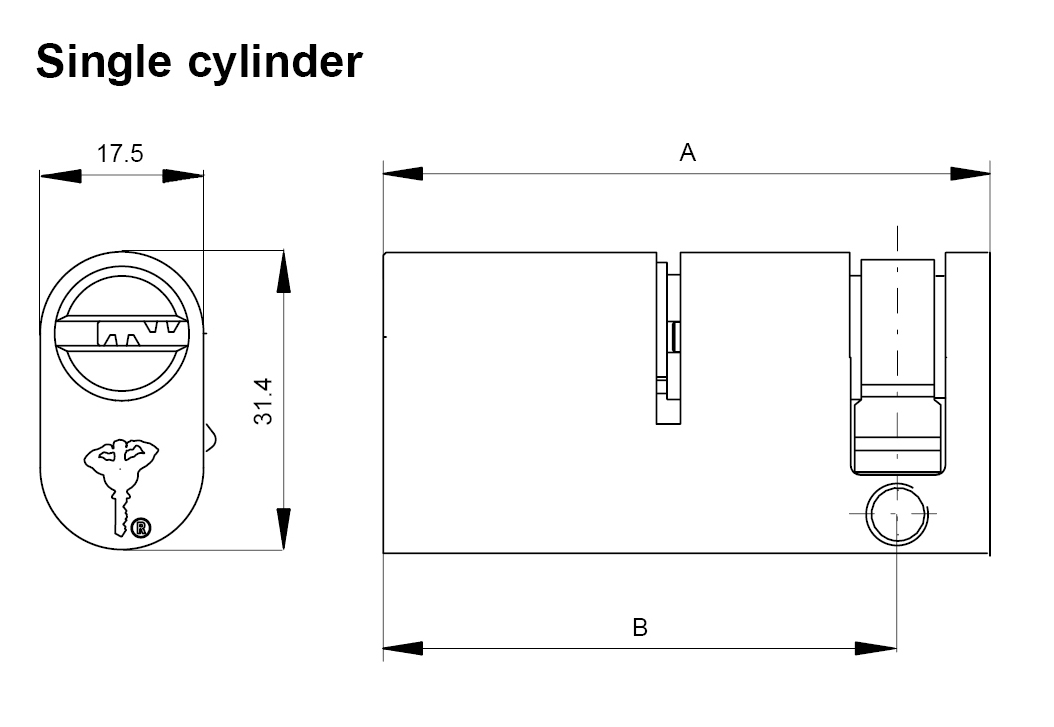

Application Compatible with lock and lock cases using UK oval profile cylinder. Operation 360˚ rotation with operating key or thumbturn. Standard double cylinder, full key insertion disengages opposite side. Materials Body and plug: high-quality brass Cam and cogwheel: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed Variety of thumbturns, cams and cogwheels Emergency cylinder with both sides permanently operational Standards Applicable to CEN uk-oval-cylinder-lengths-available-mm.jpg uk-oval-cylinder_double_drw.jpg uk-oval-cylinder_single_drw.jpg
|
|
|
|
|

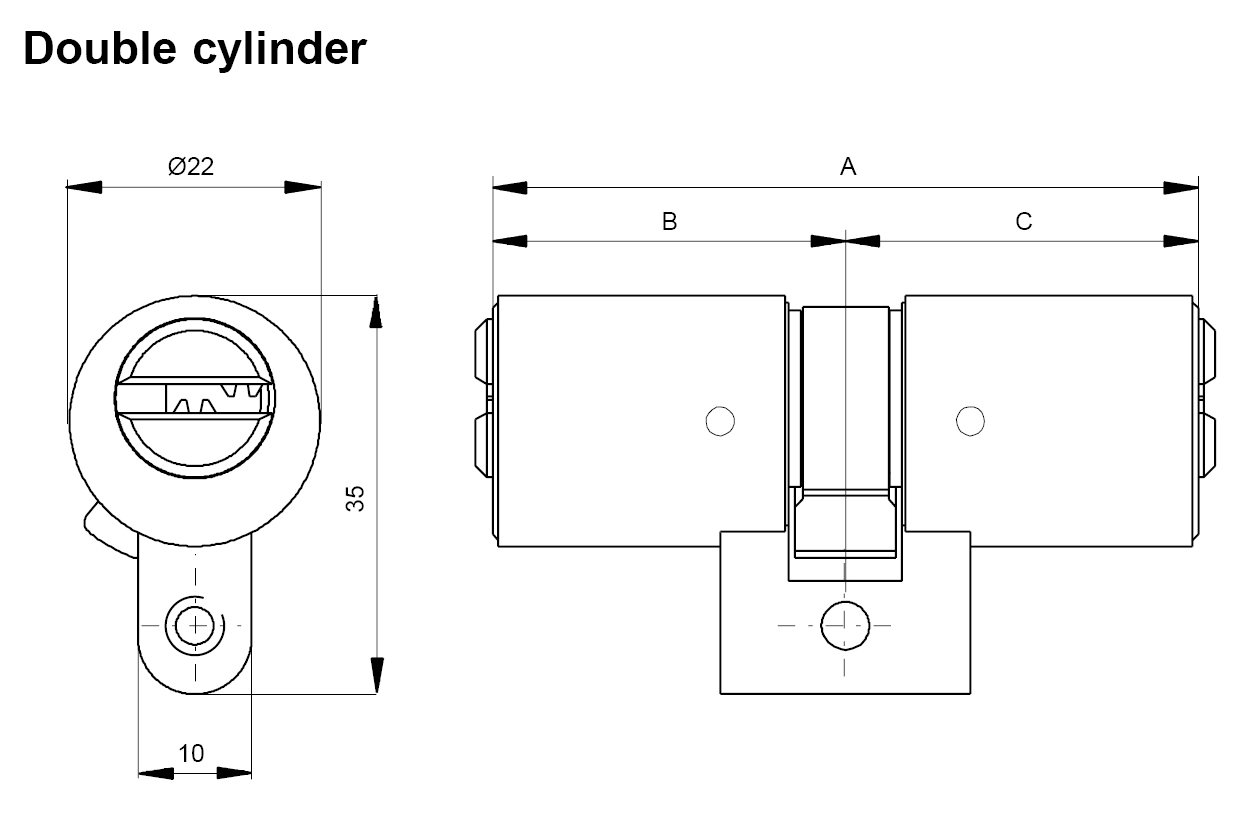

Swiss Cylinder |
|
|

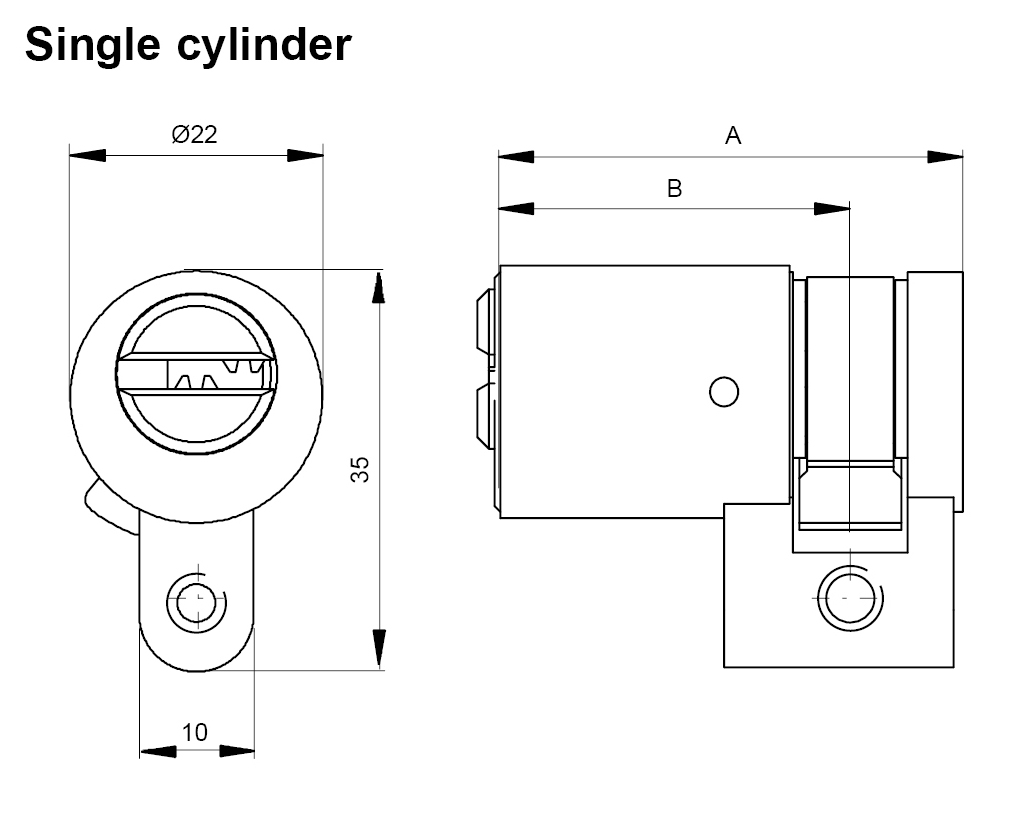

Application Compatible with locks and lock cases using Swiss profile cylinder. Operation 360˚ rotation with operating key or thumbturn. Standard double cylinder, full key insertion disengages opposite side. Materials Body and plug: high-quality brass Cam and cogwheel: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed Variety of thumbturns, cams and cogwheels Emergency cylinder with both sides permanently operational swiss-cylinder-lengths-available-mm.jpgswiss-cylinder_double_drw.jpg swiss-cylinder_single_drw.jpg
|
|
|
|
|

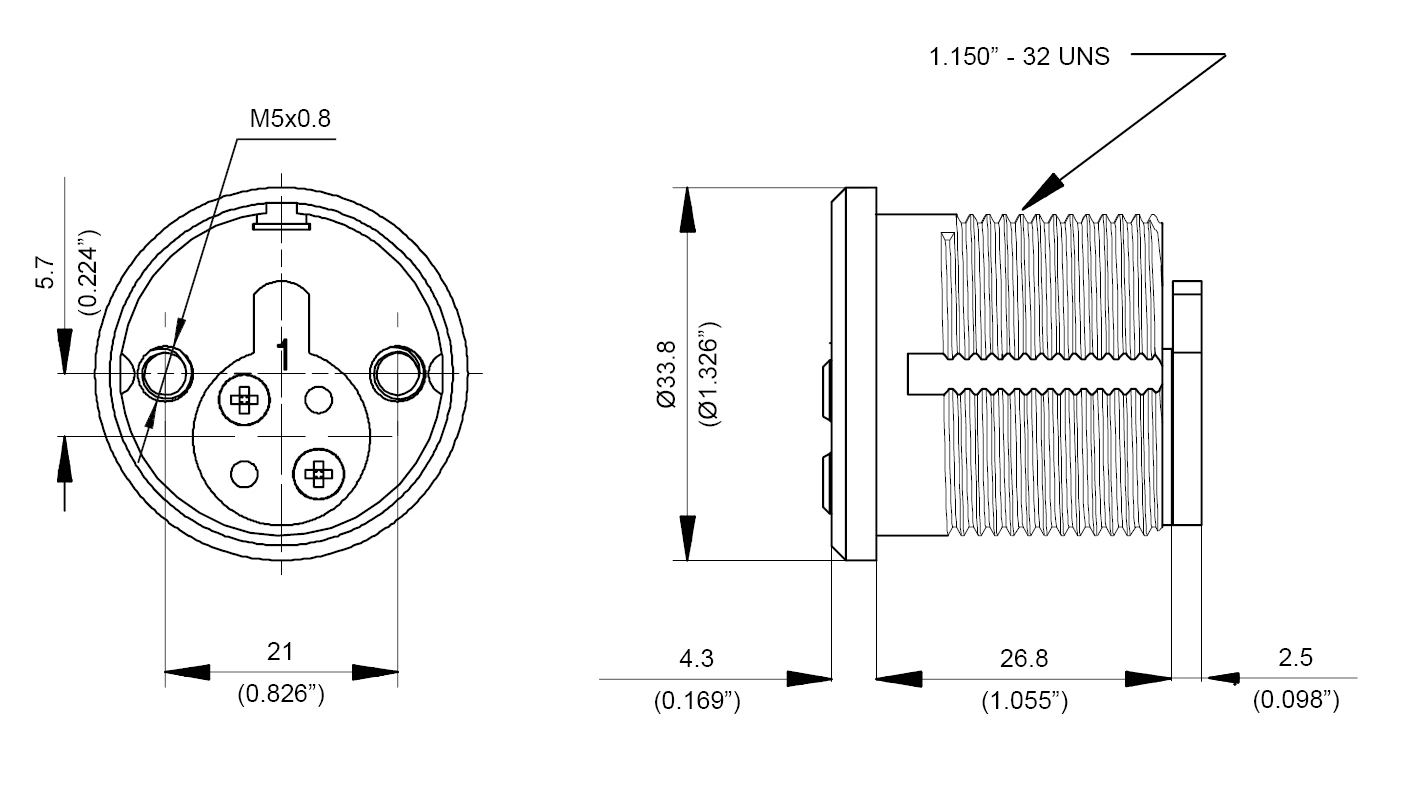

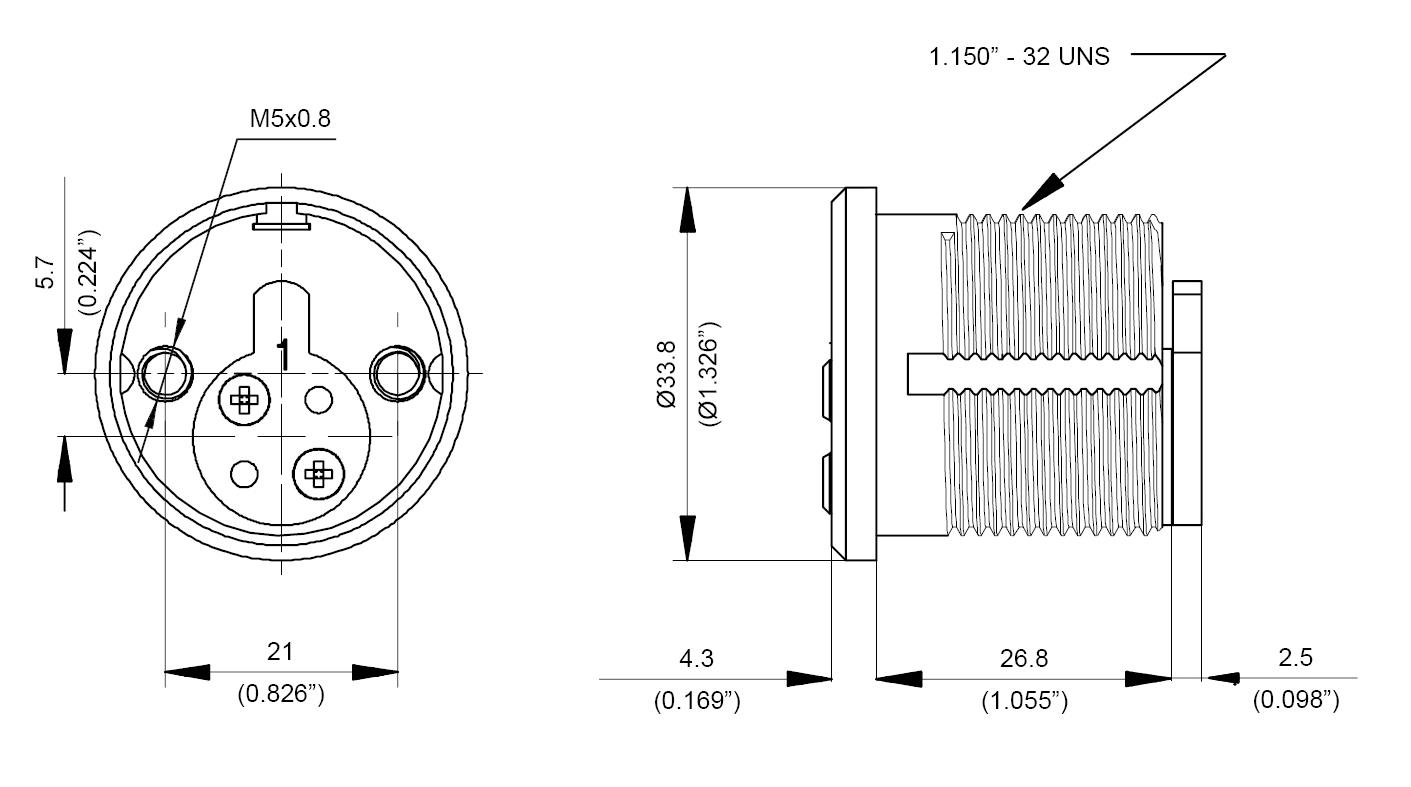

Mortise Cylinder |
|
|

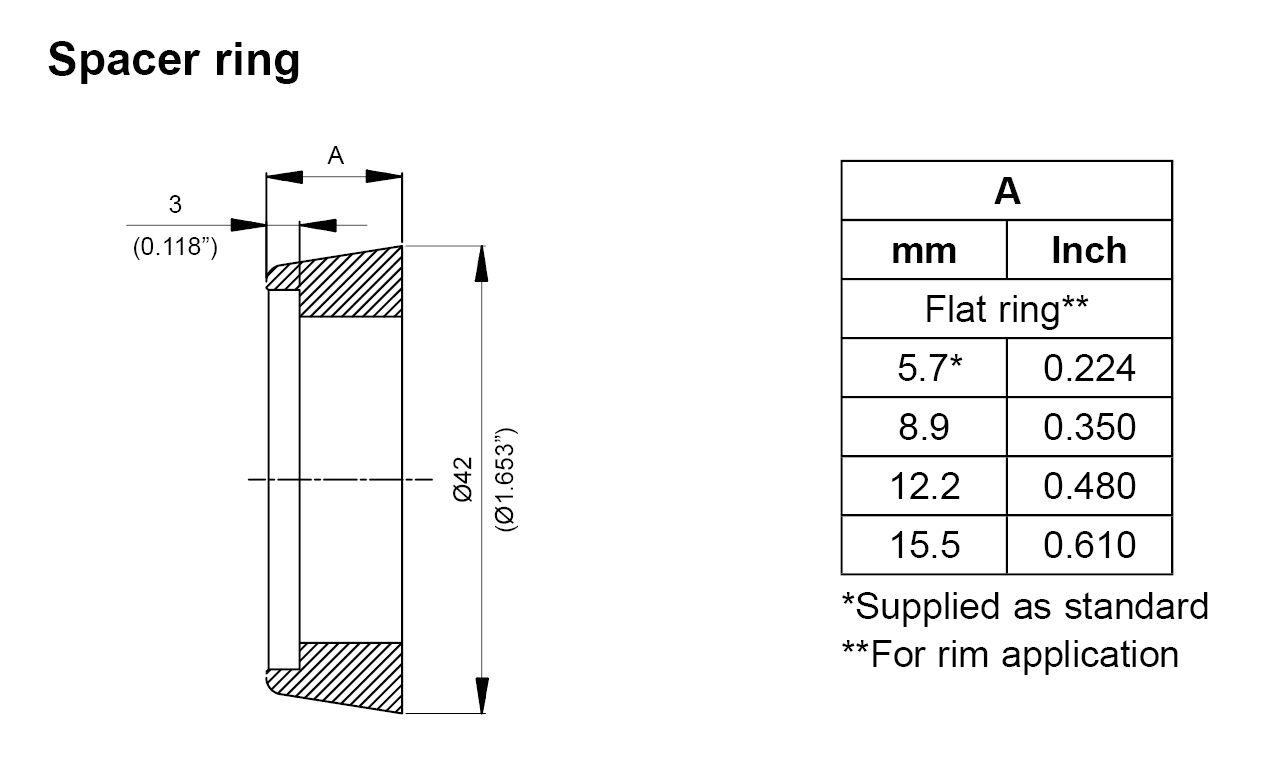

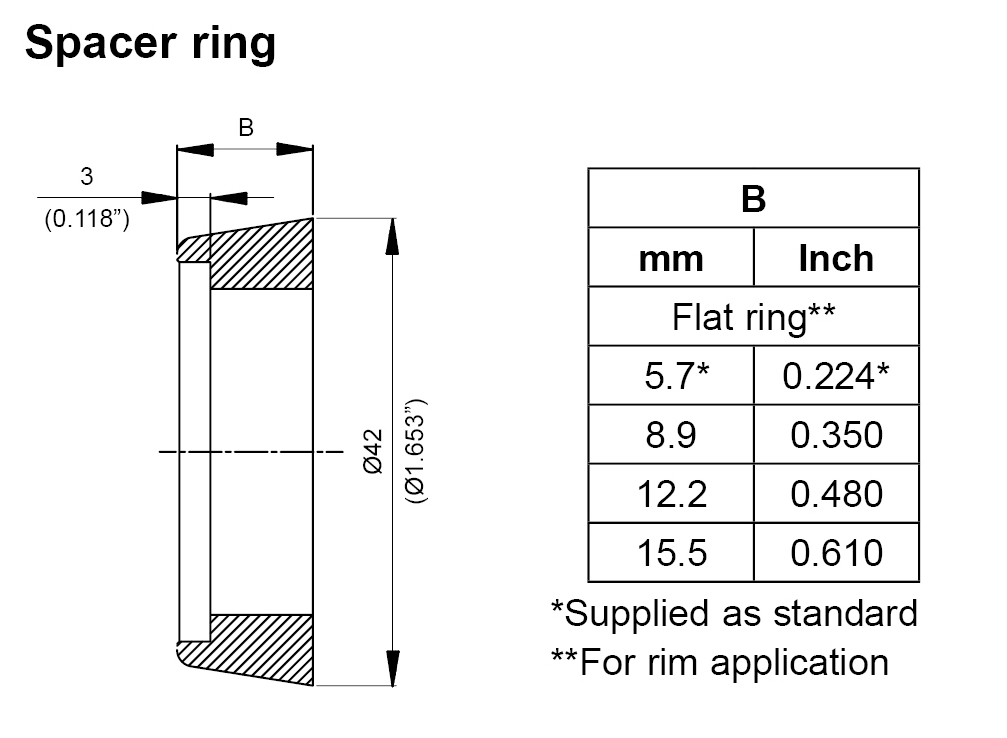

pplication Compatible with residential and commercial door locksets. Interfaces with locksets of major brands (see available cams). Can retrofit a 'Jumbo' cylinder with an adaptor ring. Operation 360˚ rotation with operating key or thumbturn. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Nickel chrome; Shiny brass Special finishes Antique bronze; Black; Antique brass; PVD Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms
Cylinder options Classic; Interactive®+; MT5® Platforms
EStandards ISI950 cylinder_drw.pdf |
|
|
|
|
Mortise Cylinder |
|
| |

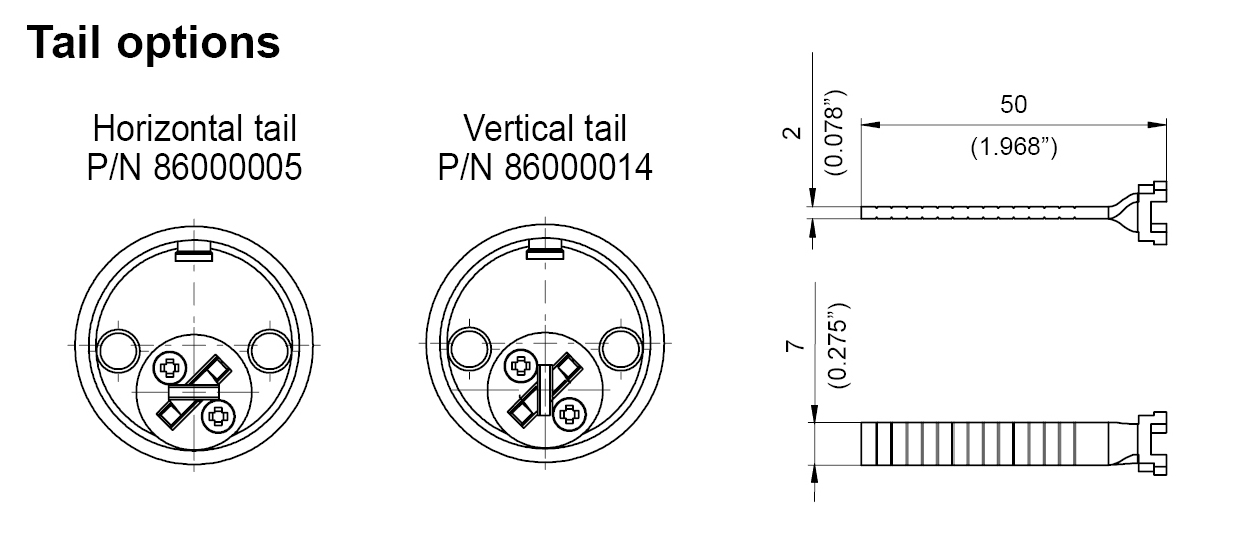

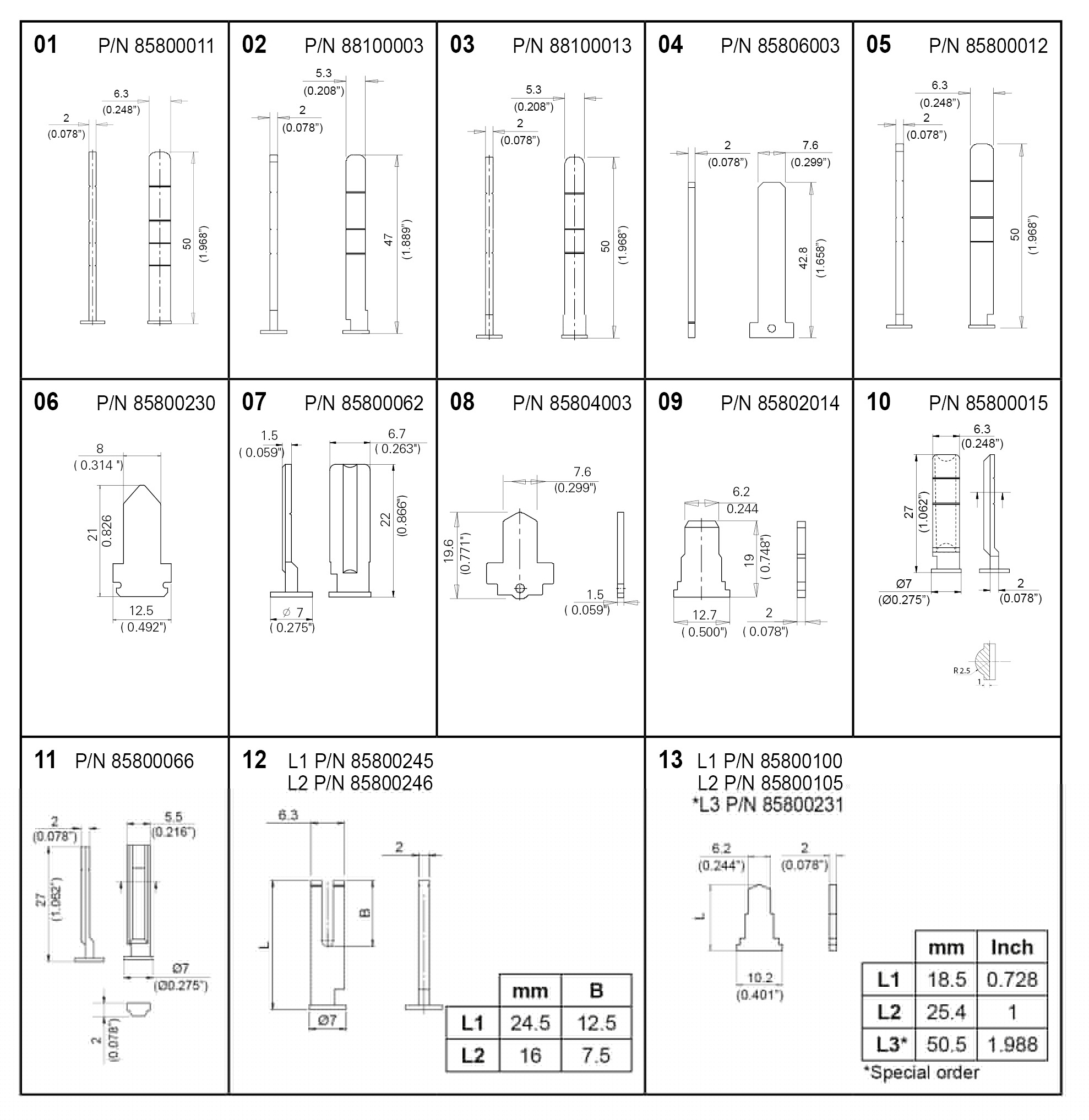

Application Compatible with residential and commercial surface mounted door locksets, interfaces with locksets of major brands. Suitable for a wide range of lock mechanisms. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Nickel chrome; Shiny brass Special finishes Antique bronze; Black; Antique brass; PVD Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed Variety of tails Standards ISI950
|
|
|
|

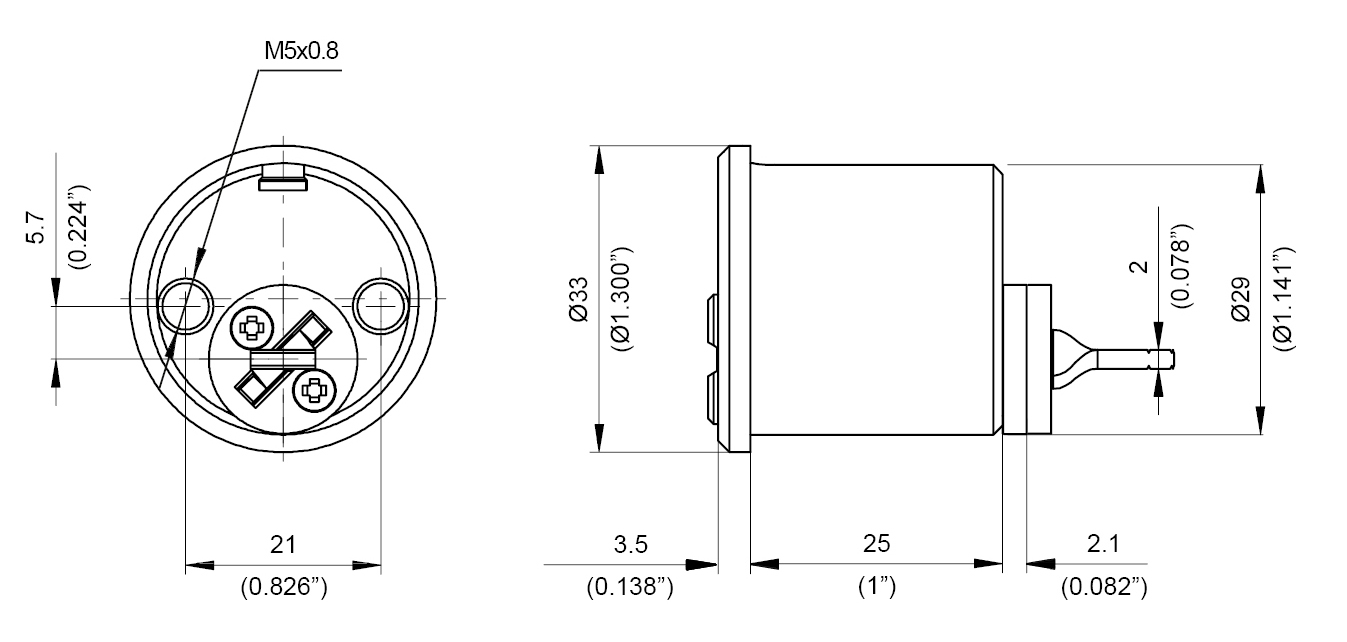

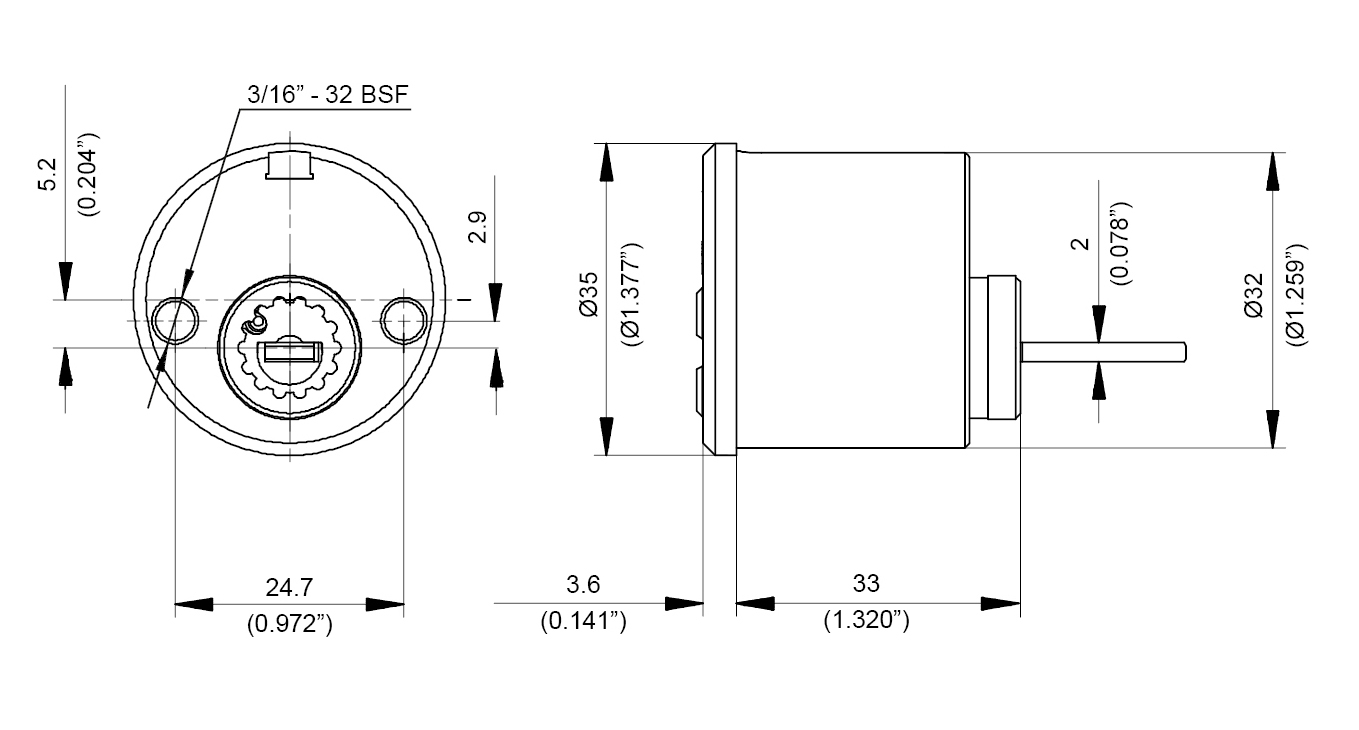

Rim Ø35 Cylinder |
|
|

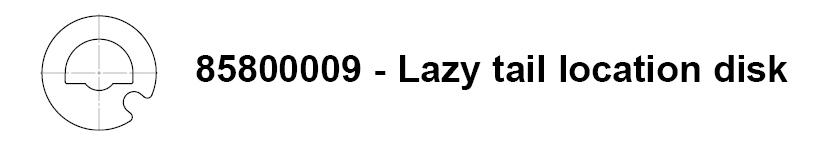

Application Compatible with residential and commercial deadbolt locksets which require a lazy tail on a round cylinder. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Nickel chrome; Shiny brass Special finishes Antique bronze; Black; Antique brass; PVD Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed Standards ISI950
|
|
|
|
|
Rimo Cylinder |
|
|
Application Dual purpose cylinder, combining rim and mortise cylinders in one. Compatible with residential and commercial door locksets. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Nickel chrome; Shiny brass Special finishes Antique bronze; Black; Antique brass; PVD Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed Standards ISI950 |
|
|
|
|

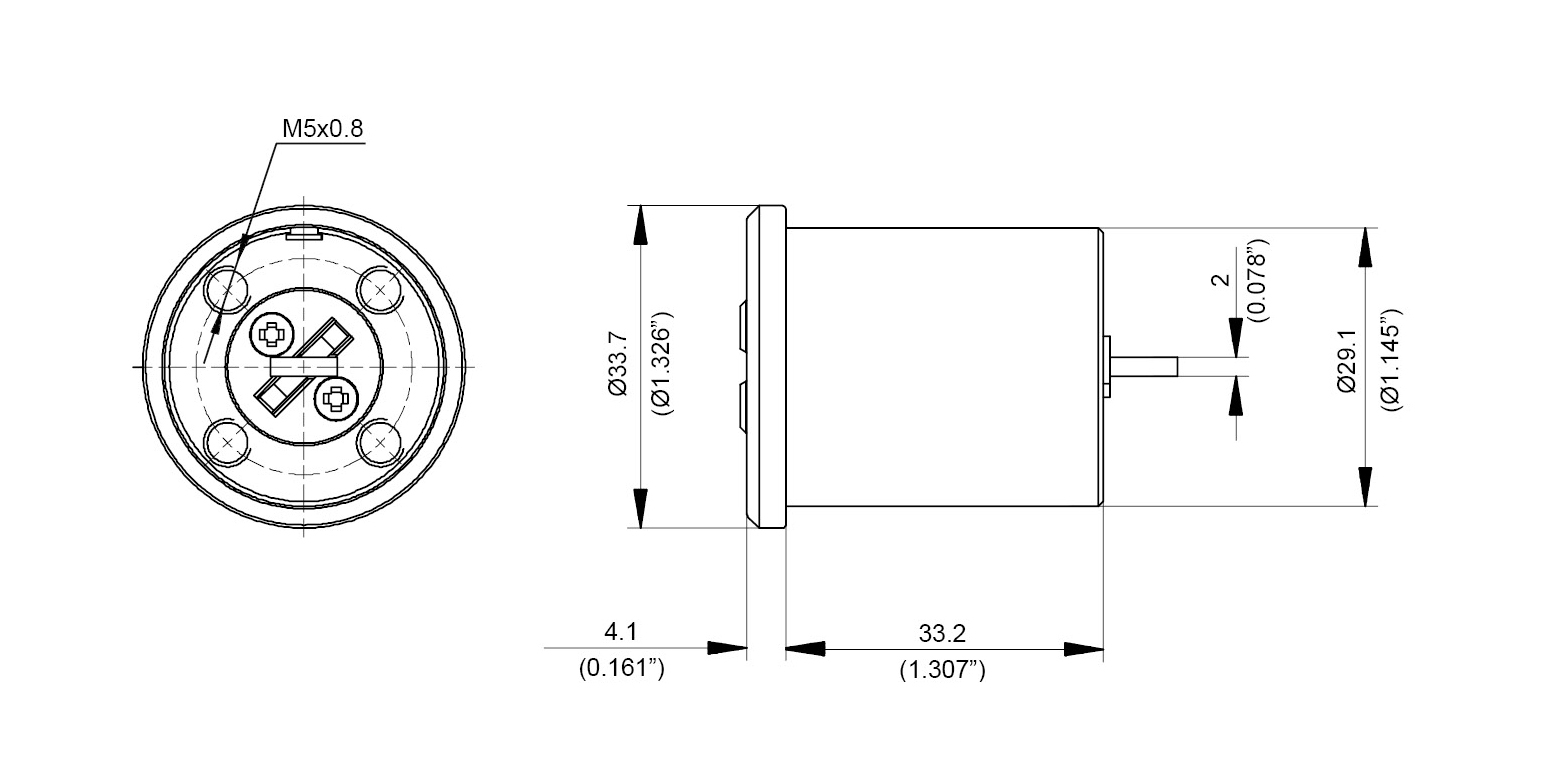

Reinforced Rim Cylinder |
|
|
Application Compatible with residential and commercial surface-mounted door locksets. Features Cylinder body Ø29 mm Central plug cylinder Four screws mount the cylinder to the door Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Shiny brass Special finishes Nickel chrome Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed
|
|
|
|
|

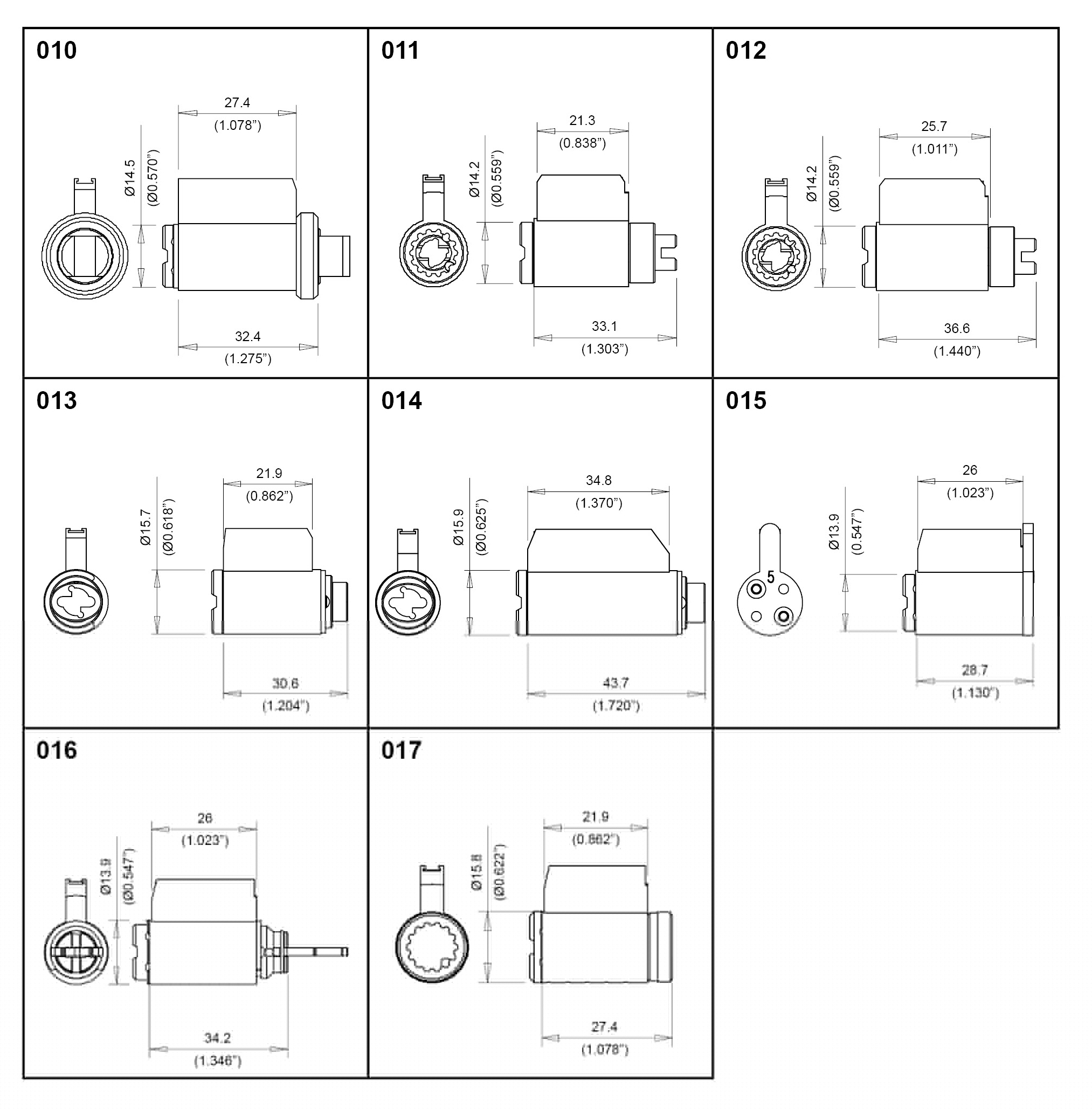

Key In Knob (K.I.K.) Cylinder |
|
|

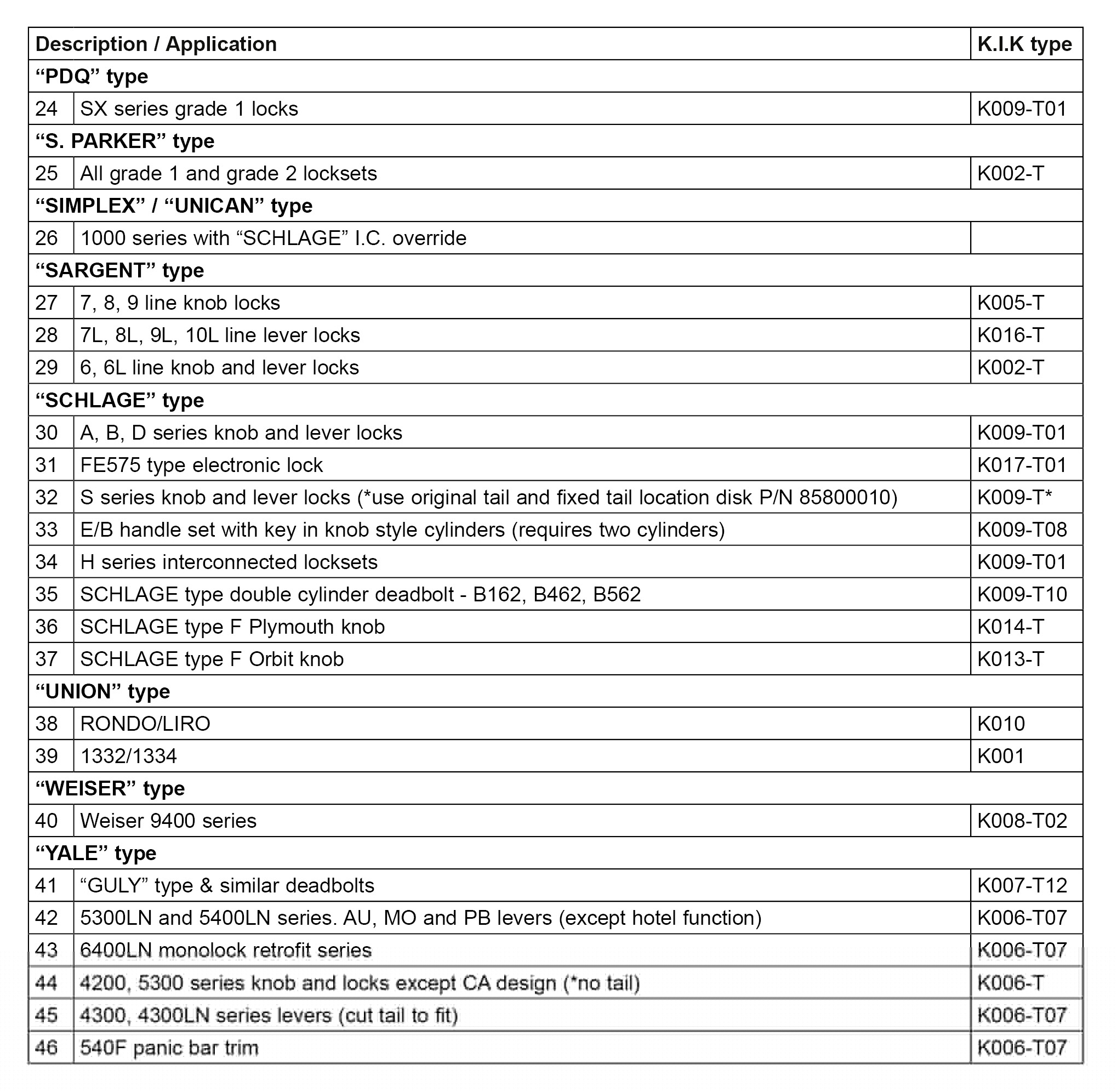

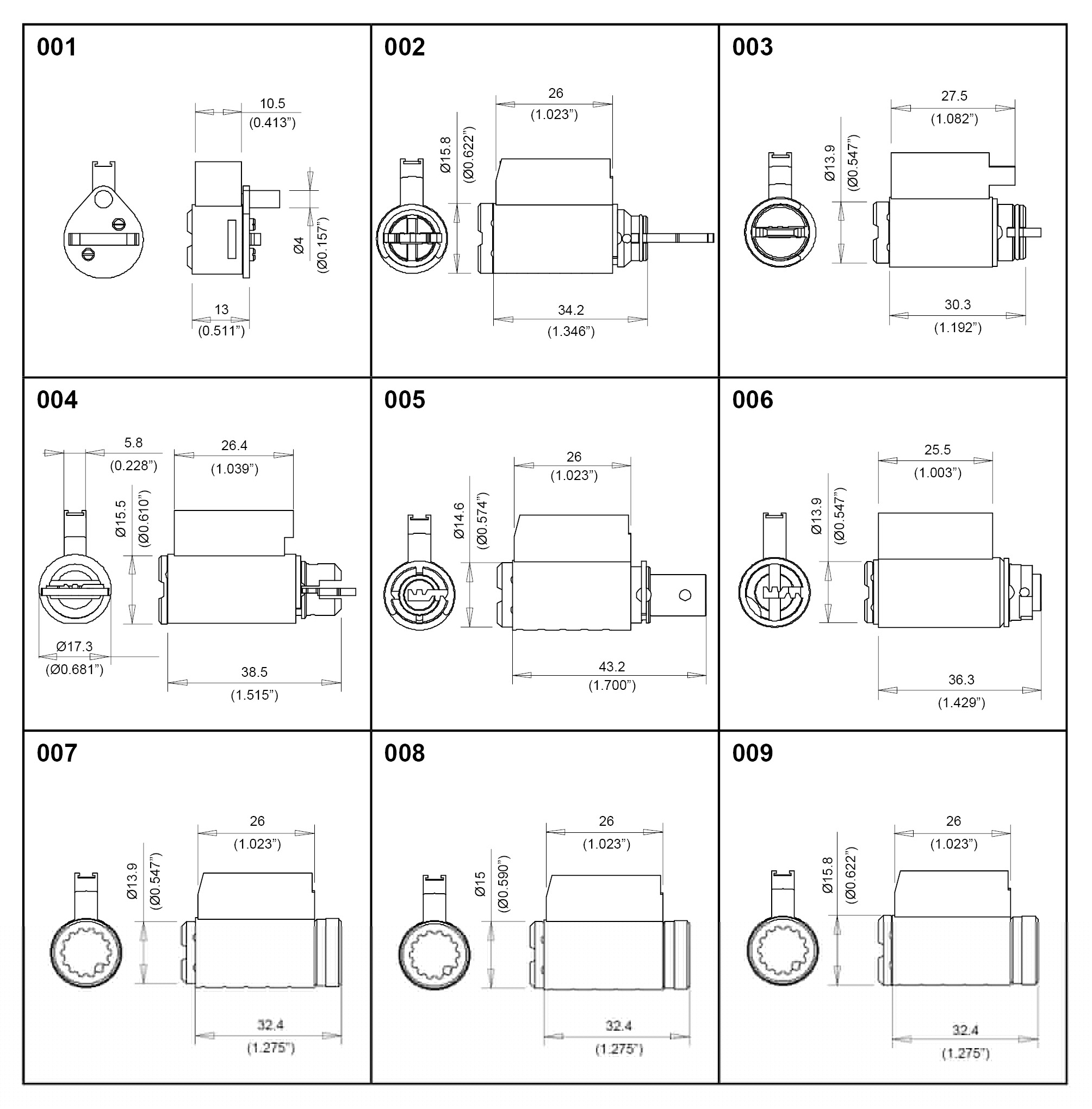

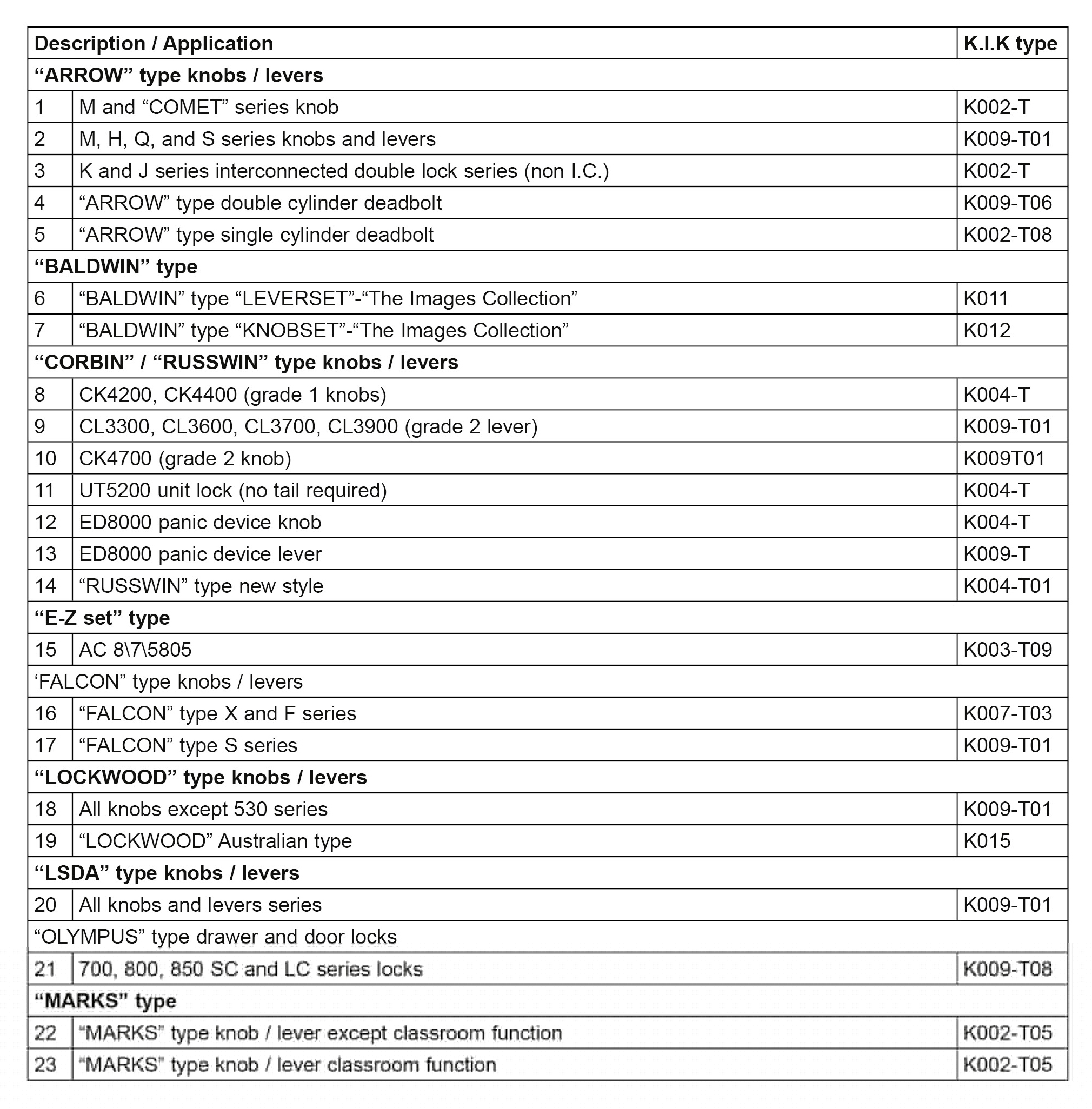

Application These cylinders are used in cylindrical locksets, deadbolts and padlocks. Mul-T-Lock provides an extensive product range to fit a wide variety of popular brands. Operation Rotation with operating key. Materials Body and plug: high-quality brass Tail pieces: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Shiny brass Special finishes Nickel chrome; Antique bronze; Antique brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed key-in-knob-k.i_.k_.-cylinder_bodies-plugs_drw_.jpg |
|
|
|
|

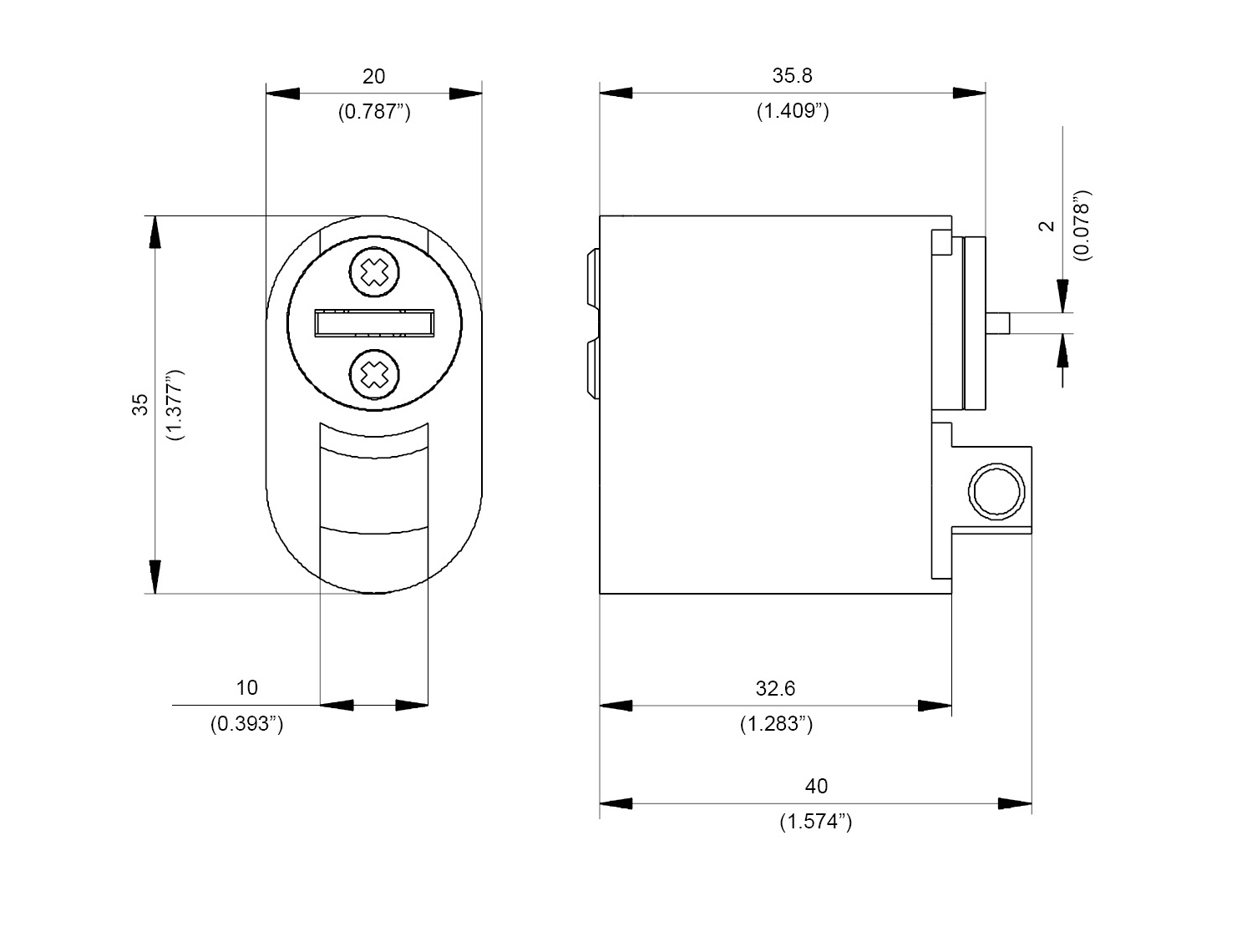

Norwegian Oval Cylinder |
|
|
Application Compatible with "Norwegian" profile, mortise lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed
|
|
|
|
|
