Retrofit Cylinders
Round Cylinder for “Ruko” Type Locks |
|
|
Application Compatible with "Ruko" cabinet lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|

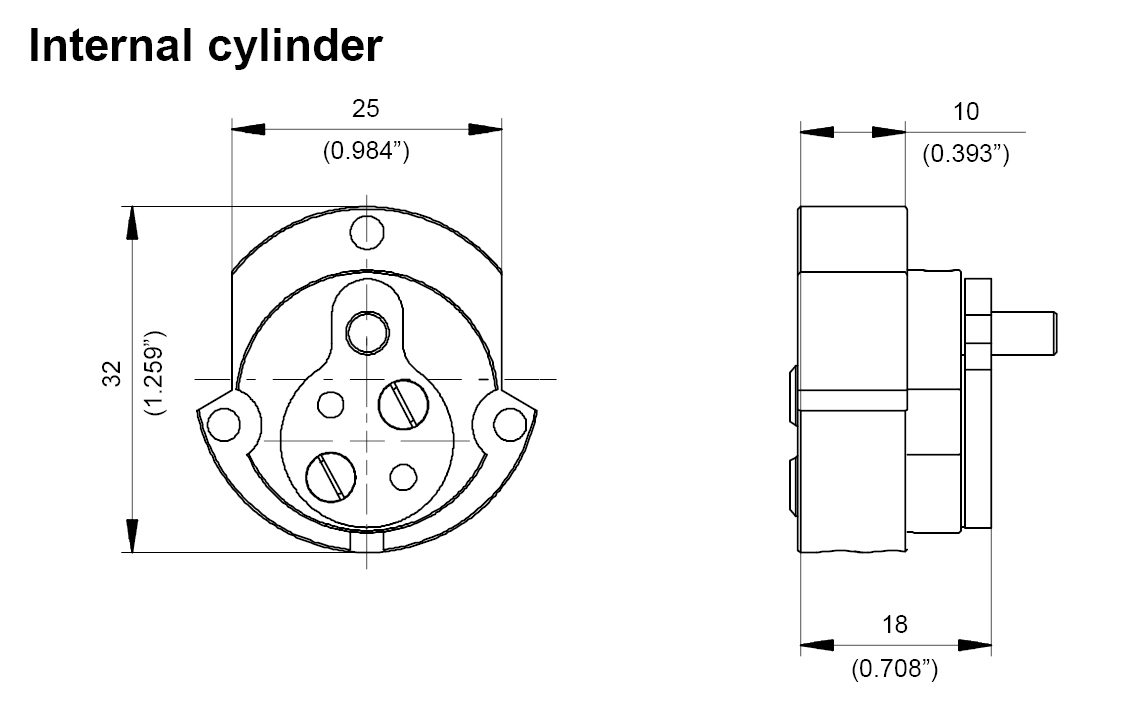

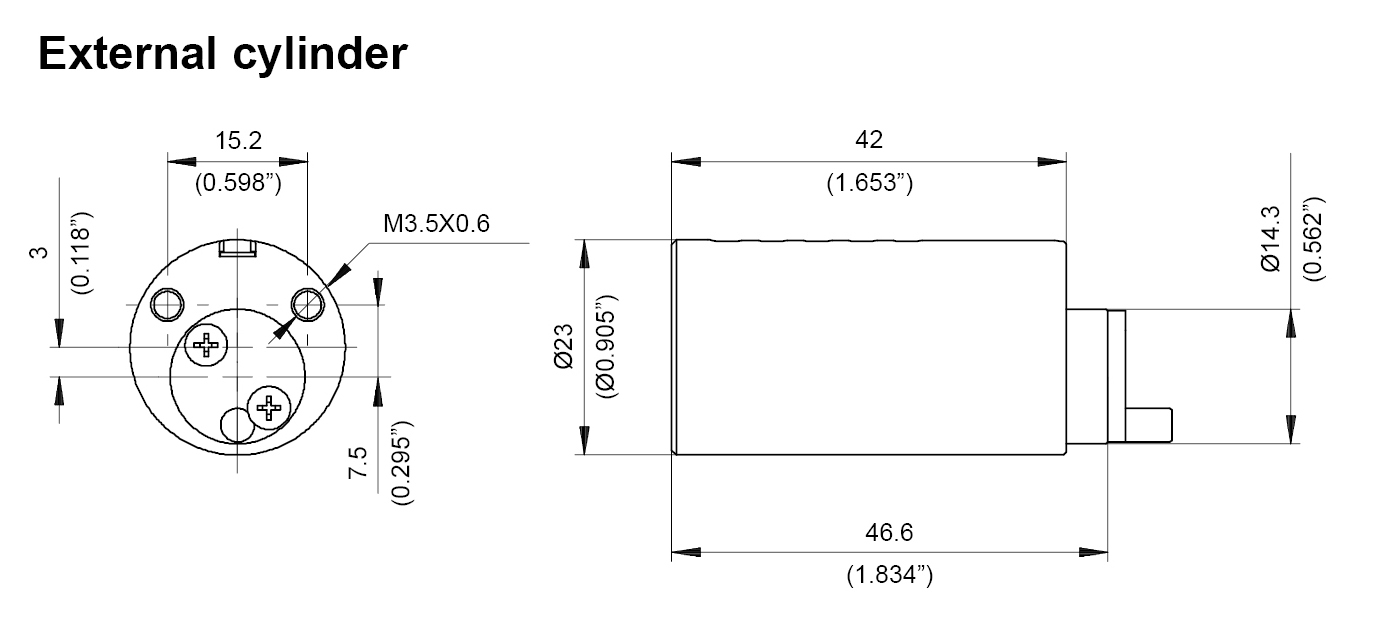

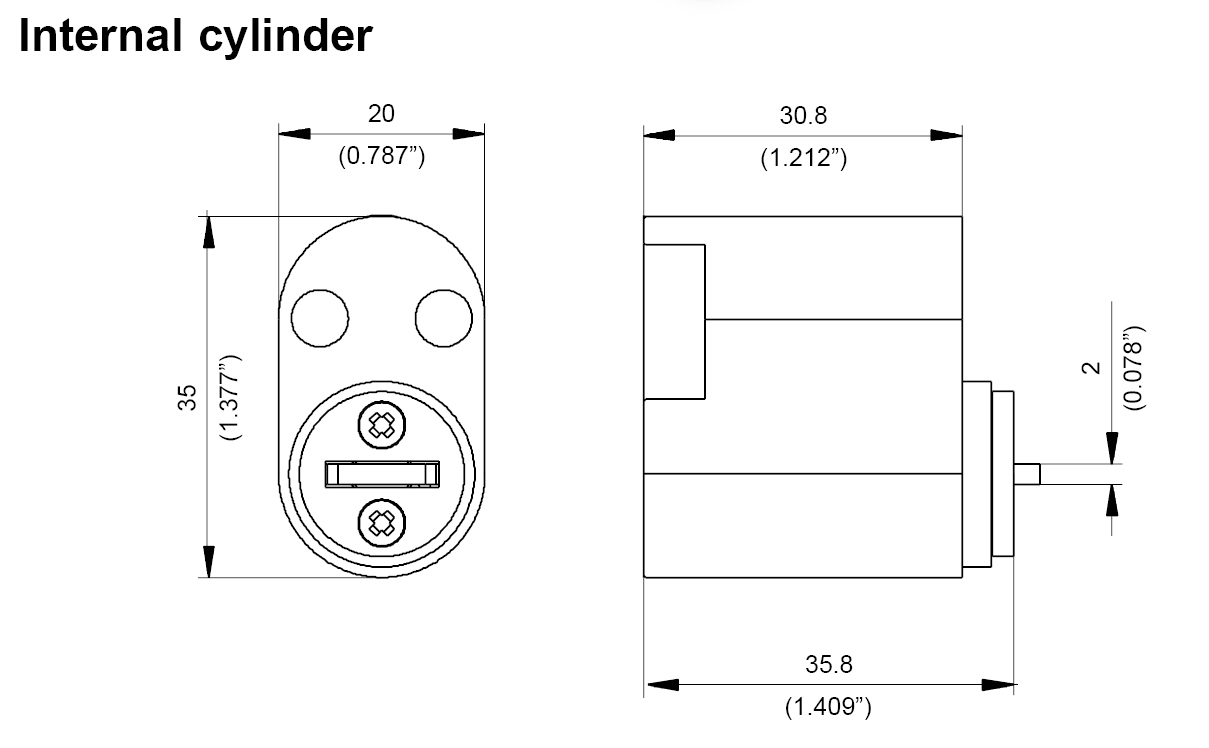

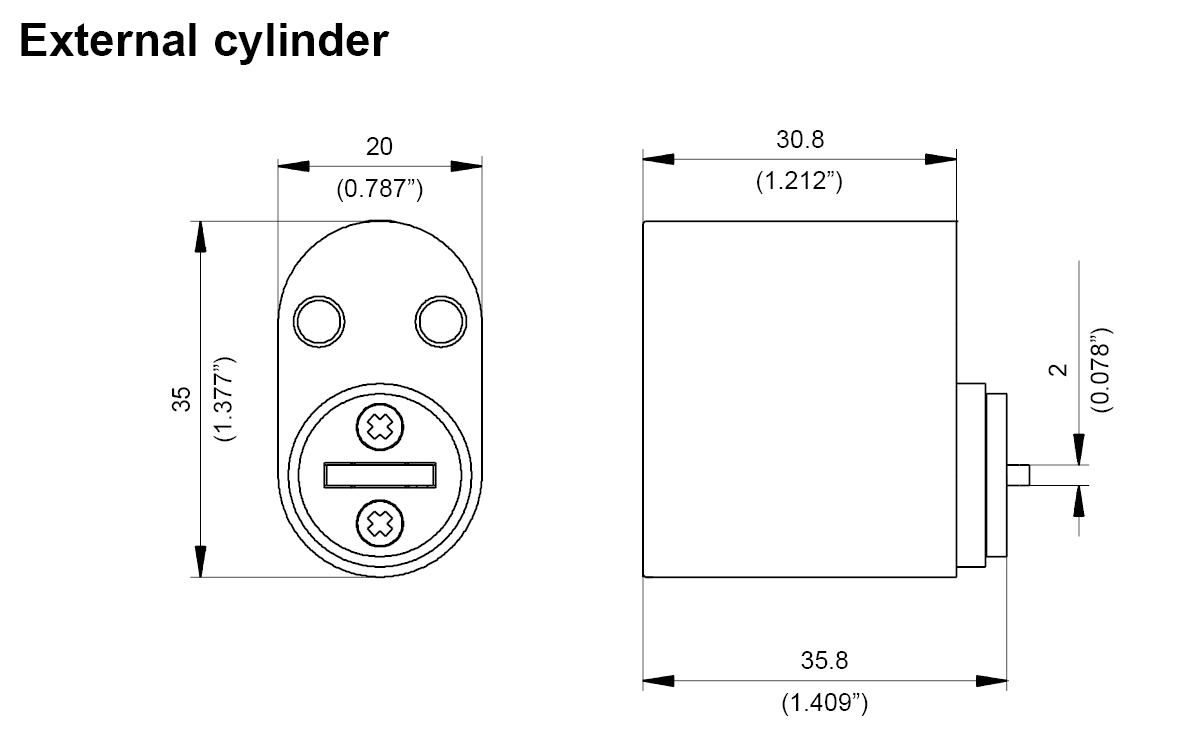

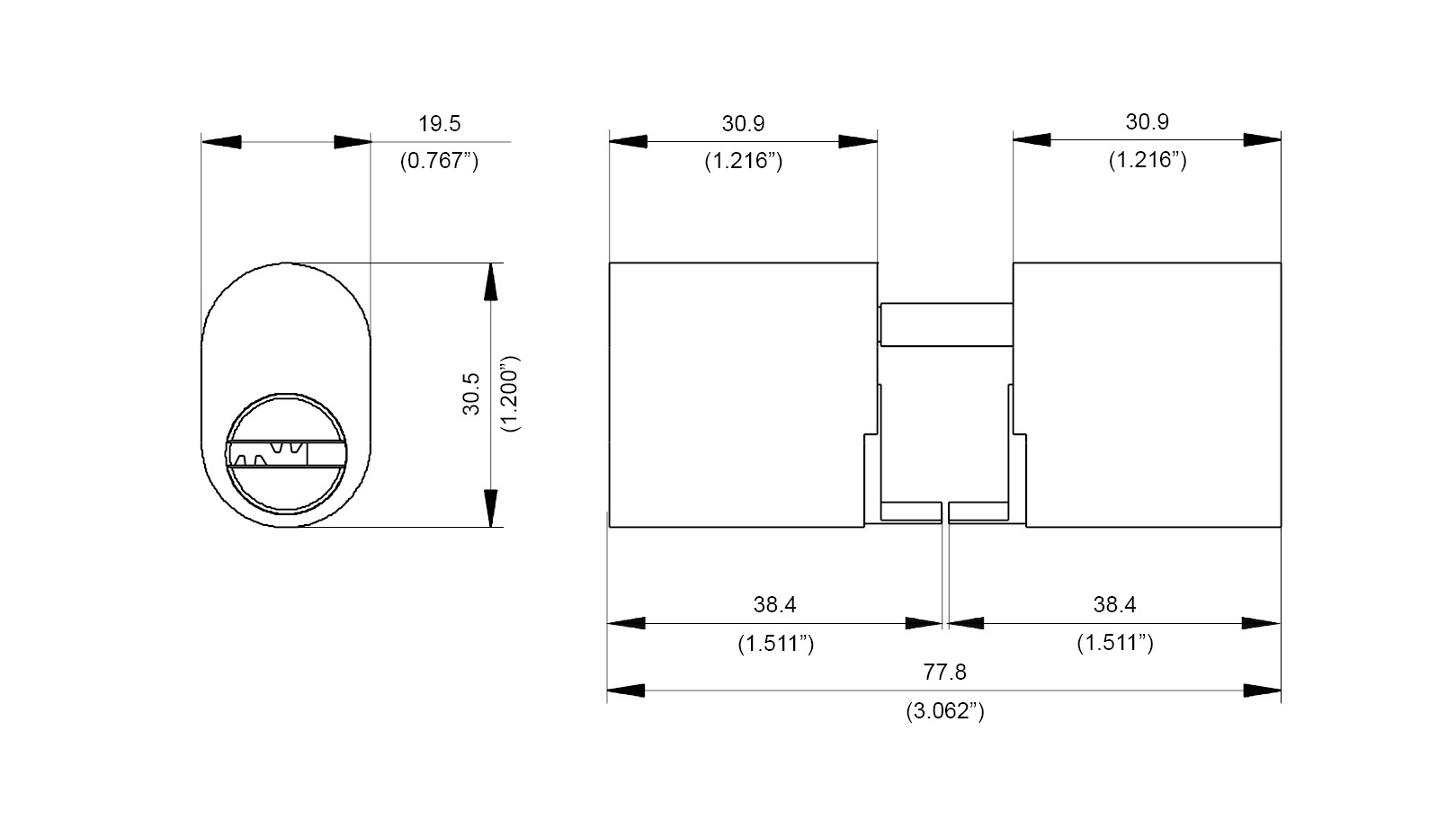

Scandinavian Oval Cylinder for “ASSA” Type Locks |
|
|
Application Compatible with "ASSA" lock cases. Operation 360˚ rotation with operating key. Options Pair of internal and external cylinders External cylinder only Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Internal cylinder with 4 chambers. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed scandinavian-oval-cylinder-for-assa-type-locks_ext_drw.jpg |
|
|
|
|

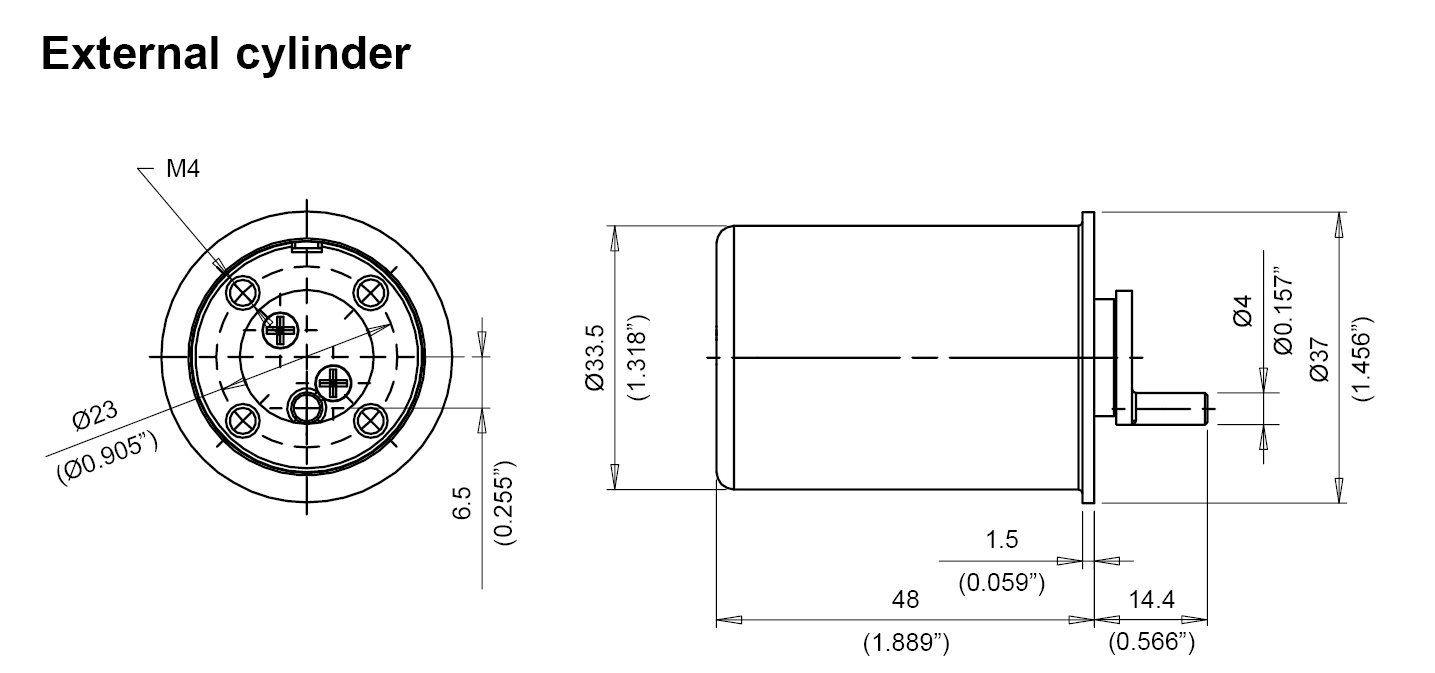

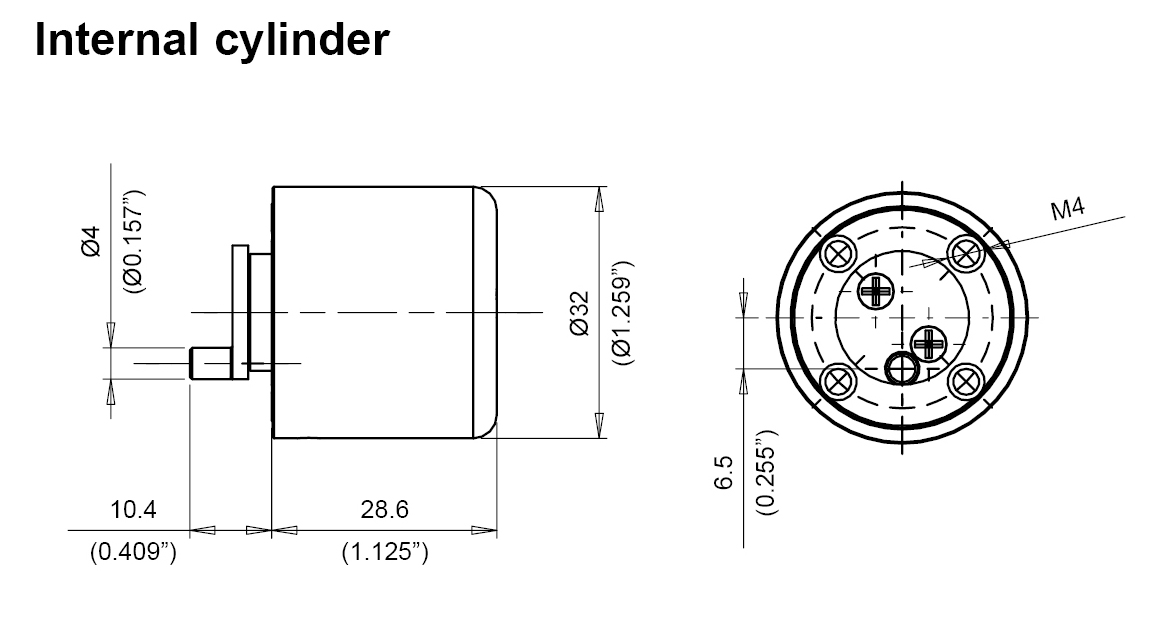

Scandinavian Round Cylinder for “ASSA” Type Locks |
|
|
Application Compatible with round "ASSA" 7000 lock cases. Operation 360˚ rotation with operating key. Options Pair of internal and external cylinders External cylinder only Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Ingersoll” Type Locks |
|
|
Application Compatible with "Ingersoll" night latch (SC 72, SC73). Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Nickel brass; Nickel chrome Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Cisa” Type Locks |
|
|
Application Compatible with "Cisa" surface-mounted lock cases. Operation 360˚ rotation with operating key. Options Pair of internal and external cylinders External cylinder only Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Internal cylinder with 2 chambers. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed cylinder-for-cisa-type-locks_ext_drw.jpg |
|
|
|
|
Cylinder for “Fichet” Type Rim Locks |
|
|
Application Compatible with "Fichet" rim lock cases. Operation 360˚ rotation with operating key. Options Pair of internal and external cylinders Materials Body and plug: high-quality brass Latch: cast alloy Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Fichet” Type Mortise Locks |
|
|
Application Compatible with "Fichet" mortise lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Lockwood” Type Locks |
|
|
Application Compatible with "Lockwood" lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Keso” Type Locks |
|
|
Application Compatible with "Keso" mortise lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options Keyed different Keyed alike Master keyed cylinder-for-keso-type-locks_ext_drw.jpg |
|
|
|
|
Cylinder for “Blindex” Type Locks |
|
|
Application Compatible with "Blindex" locks for glass doors. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: Steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Vega” Type Locks |
|
|
Application Compatible with "Vega" lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed cylinder-for-vega-type-locks_ext_drw.jpg |
|
|
|
|
Cylinder for “Weiser” Type Locks |
|
|
Application Compatible with "Weiser" D400 lock and "Prestige" Line. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Brass; Nickel chrome matte; Shiny brass Special finishes Nickel chrome Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Kwikset” Type Locks |
|
|
Application Compatible with "Kwikset" Titan deadbolt (780, 785). Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Tail: steel Pins: nickel silver and stainless steel Standard finishes Shiny brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed cylinder-for-kwikset-type-locks_ext_drw.jpg |
|
|
|
|

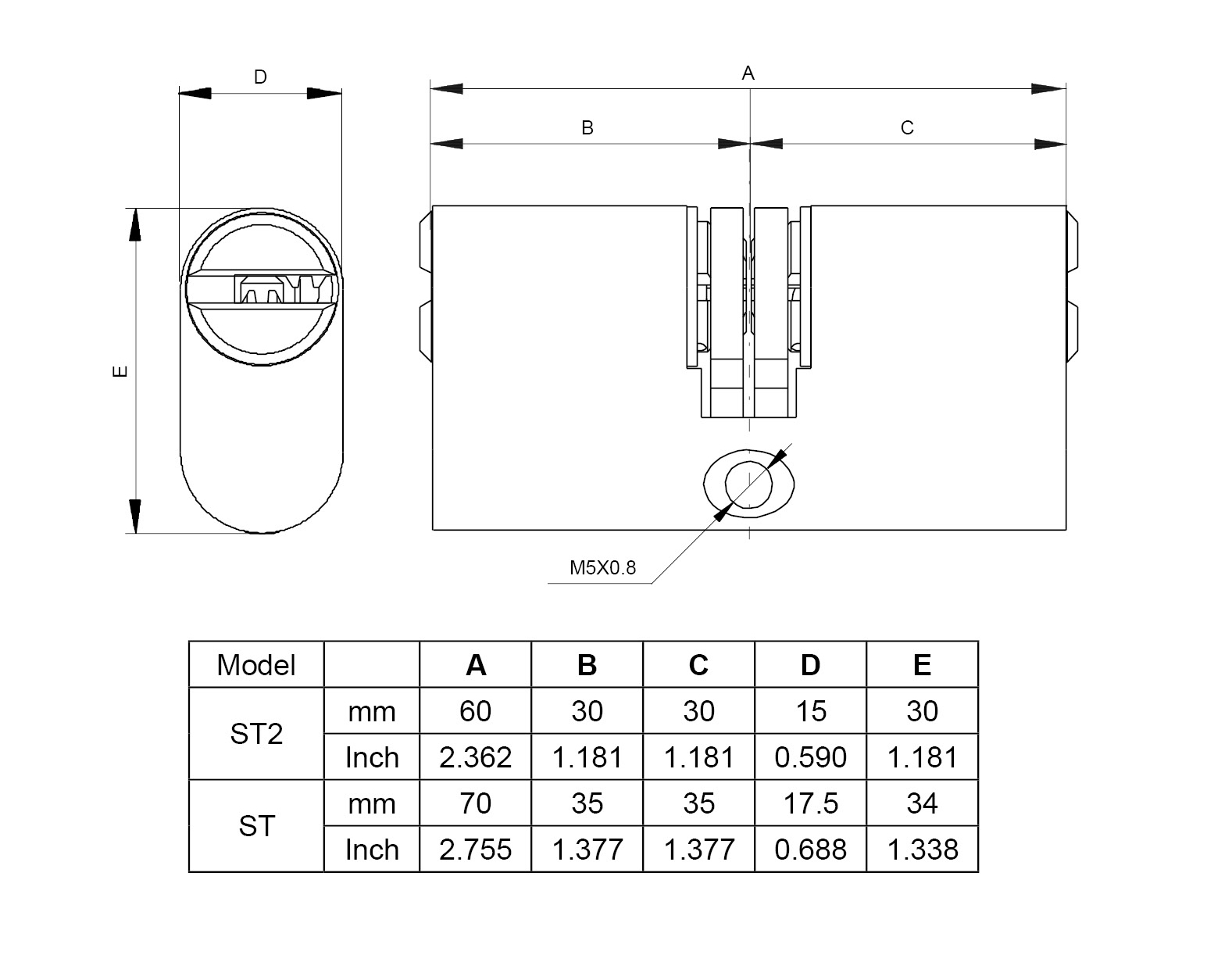

Cylinder for “Yale” Type ST & ST2 Locks |
|
|
Application Compatible with "Yale" ST & ST2 mortise lock cases. Operation 360˚ rotation by operating key. Standard double cylinder − both sides permanently operational. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Vachette” Type Locks |
|
|
Application Compatible with "Vachette" mortise lock cases. Operation Rotation with operating key. Identical inner and outer cylinders. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “City” Type Locks |
|
|
Application Compatible with "City" mortise lock cases. Operation Rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Bricard” Type Locks |
|
|
Application Compatible with "Bricard" mortise lock cases. Operation 360˚ rotation with operating key or thumbturn. Standard double cylinder. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|

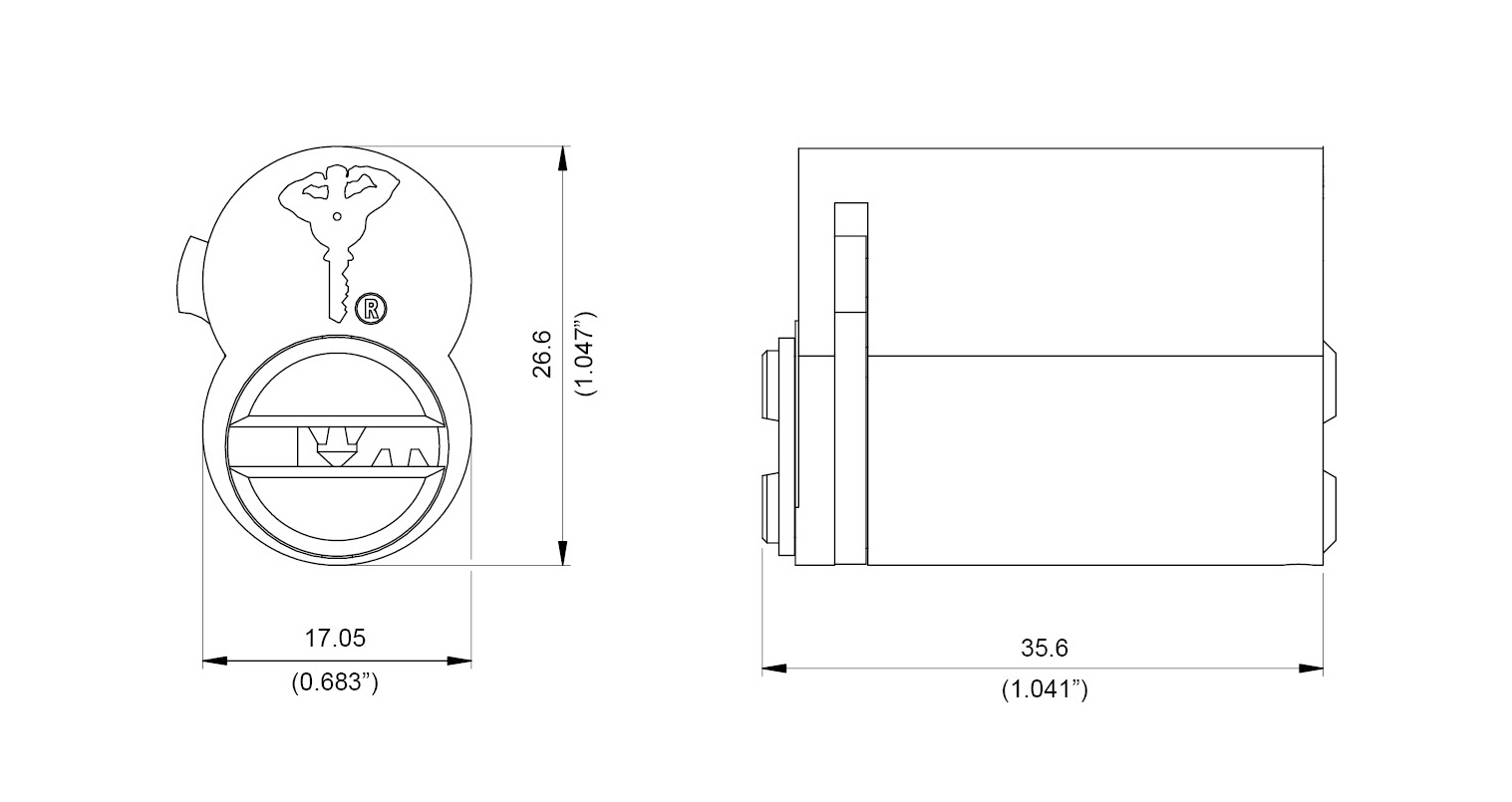

Cylinder for “Yale” Type I.C. Locks |
|
|
Application Retrofitting core of "Yale" housing for various applications. Operation Regular key: 360˚ rotation. Control key: 90˚ rotation to enable core extraction. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Brass; Nickel chrome matte Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Schlage” Type I.C. Locks |
|
|
Application Retrofitting interchangeable core of "Schlage" housing for various applications. Operation Regular key: 360˚ rotation. Control key: 90˚ rotation to enable core extraction. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome matte; Shiny brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “C.V.L.” Type Locks |
|
|
Application Compatible with "C.V.L." lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+ Cylinder options Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Baldwin” Type Locks |
|
|
Application Compatible with "Baldwin" lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel satin; Nickel chrome matte; Shiny brass Special finishes Nickel chrome; Black; Antique brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options '3 IN 1' (changeable combination) Keyed different Keyed alike Master keyed |
|
|
|
|
Cylinder for “Cazis” Type Locks |
|
|
Application Compatible with "Cazis" lock cases. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Cam: steel Pins: nickel silver and stainless steel Standard finishes Nickel chrome Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options Keyed different Keyed alike Master keyed cylinder-for-cazis-type-locks_ext_drw.jpg |
|
|
|
|

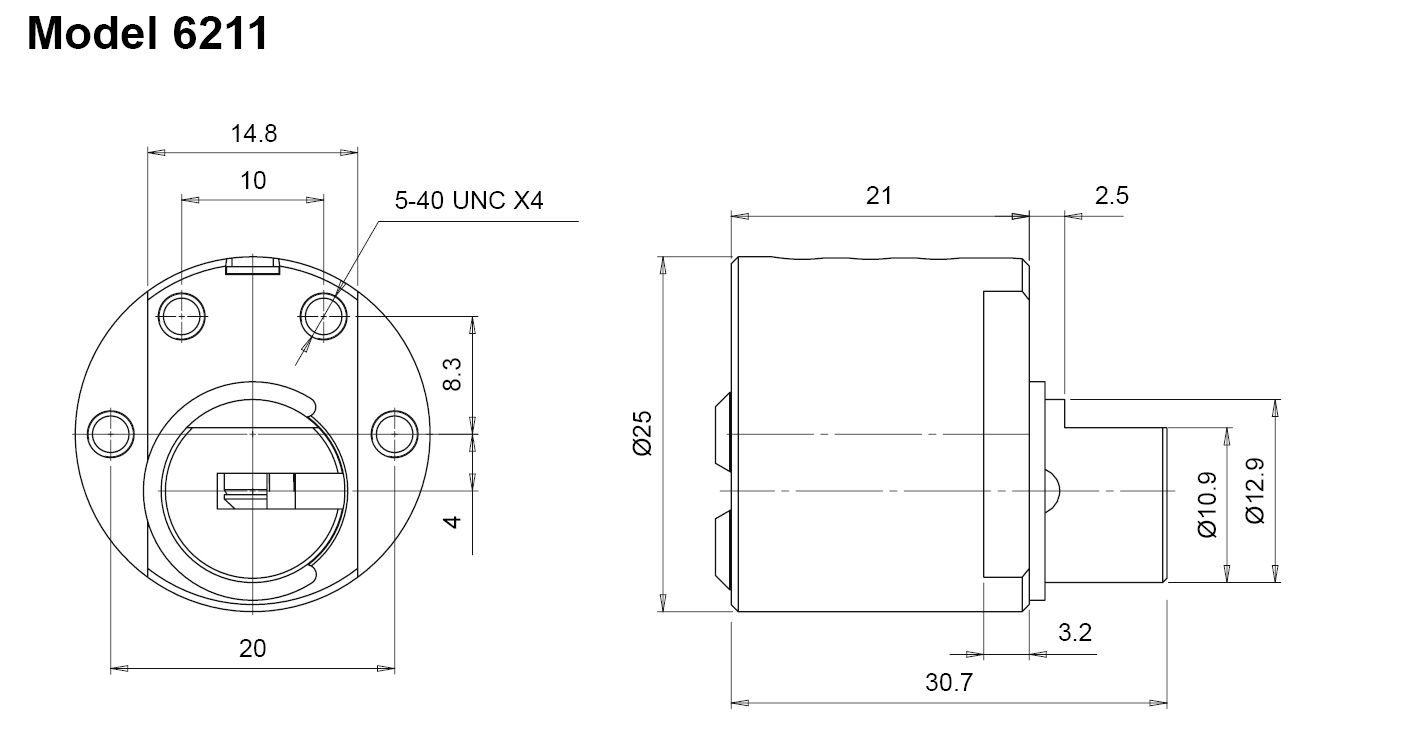

Cylinder for “Prefer” Type Locks |
|
|
Application Compatible with "Prefer" lock cases, models 6011, 6211. Operation 360˚ rotation with operating key. Materials Body and plug: high-quality brass Pins: nickel silver and stainless steel Standard finishes Brass Cylinder mechanism Mul-T-Lock's unique, high-precision pin tumbler system. Keys Reversible nickel silver key with plastic key head and colored insert. Also available in all nickel silver. Cylinder platforms Classic; Interactive®+; MT5® Cylinder options Keyed different Keyed alike Master keyed |
|
|
|
|
